Real-time Turbine Engine Monitoring

Upgrade select turbine aircraft with an advanced engine indication system (EIS) that helps you maximize the efficiency of your engine and protect your investment.

Available Aircraft

TXi™ EIS installation approval is available for select turbofan or PT6 and TPE-331 powered turbine aircraft. With an installed interface module and sensors, the TXi EIS system serves as the primary EIS display for select turbine-powered aircraft — so you can remove outdated analog gauges or prior EIS displays to complete your all Garmin panel.

Choice of Sizes

A single 12.1-inch or 10.6-inch TXi display can accommodate PFD, MFD and a vertical EIS strip. The 7-inch portrait format can act as a dedicated EIS display¹.

Engine Operation

See clear visual cues of your engine performance with easy-to-read EIS displays.

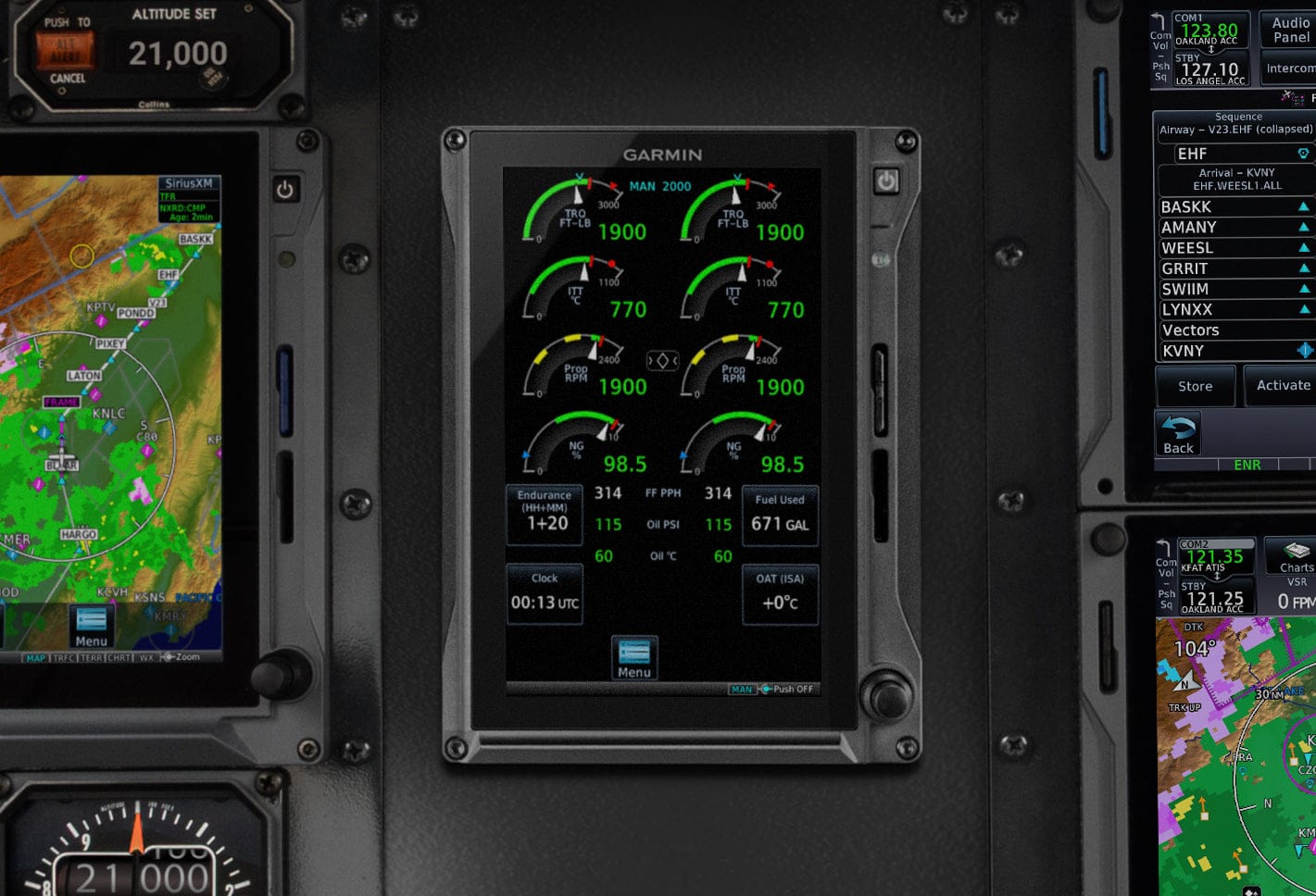

Gauge-range Markers

See dynamic gauge-range markings that automate color-coded pointers and data bands for torque, prop RPM, Ng percent and interstage turbine temperature — all based on the aircraft’s current condition. Shaft horsepower is available for any aircraft.

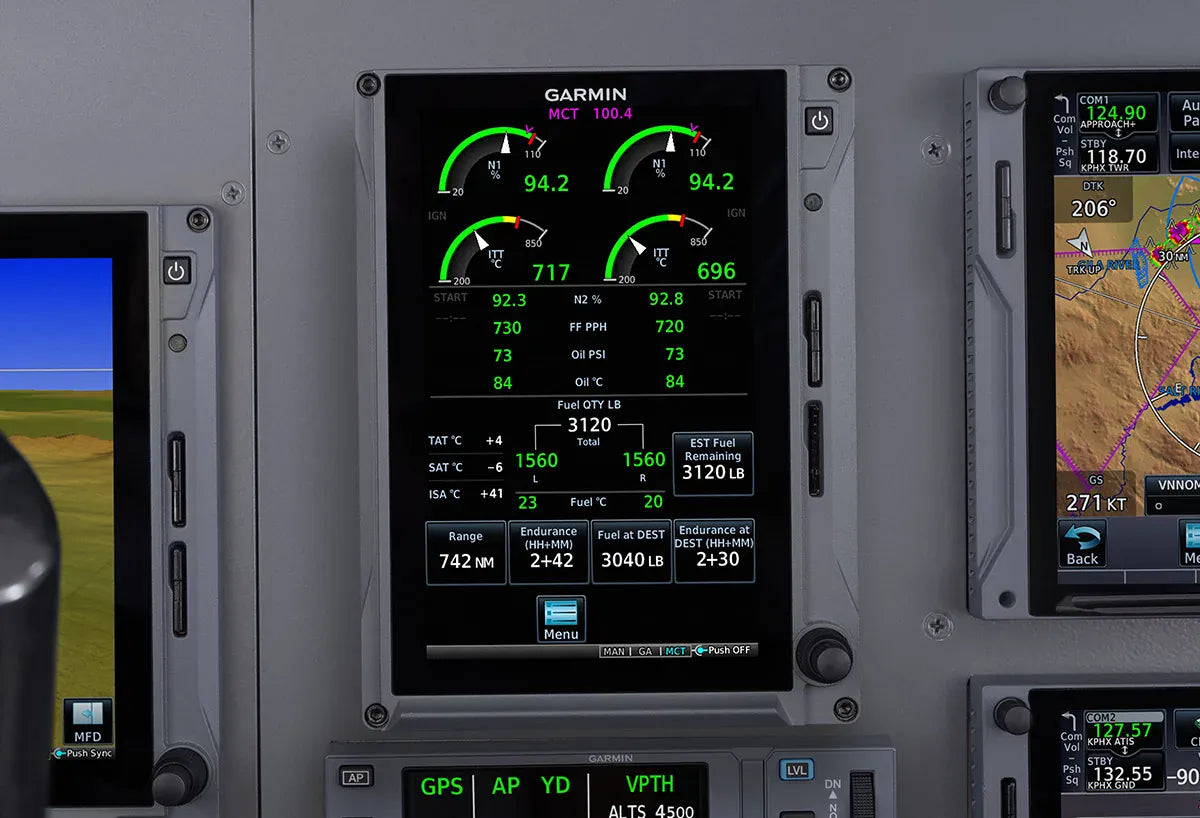

Precise Indications

Function gauges and indicators include oil pressure and temperature as well as fuel flow and electrical system status — and bar gauges display numerical values for additional precision.

Engine Timers and Alerts

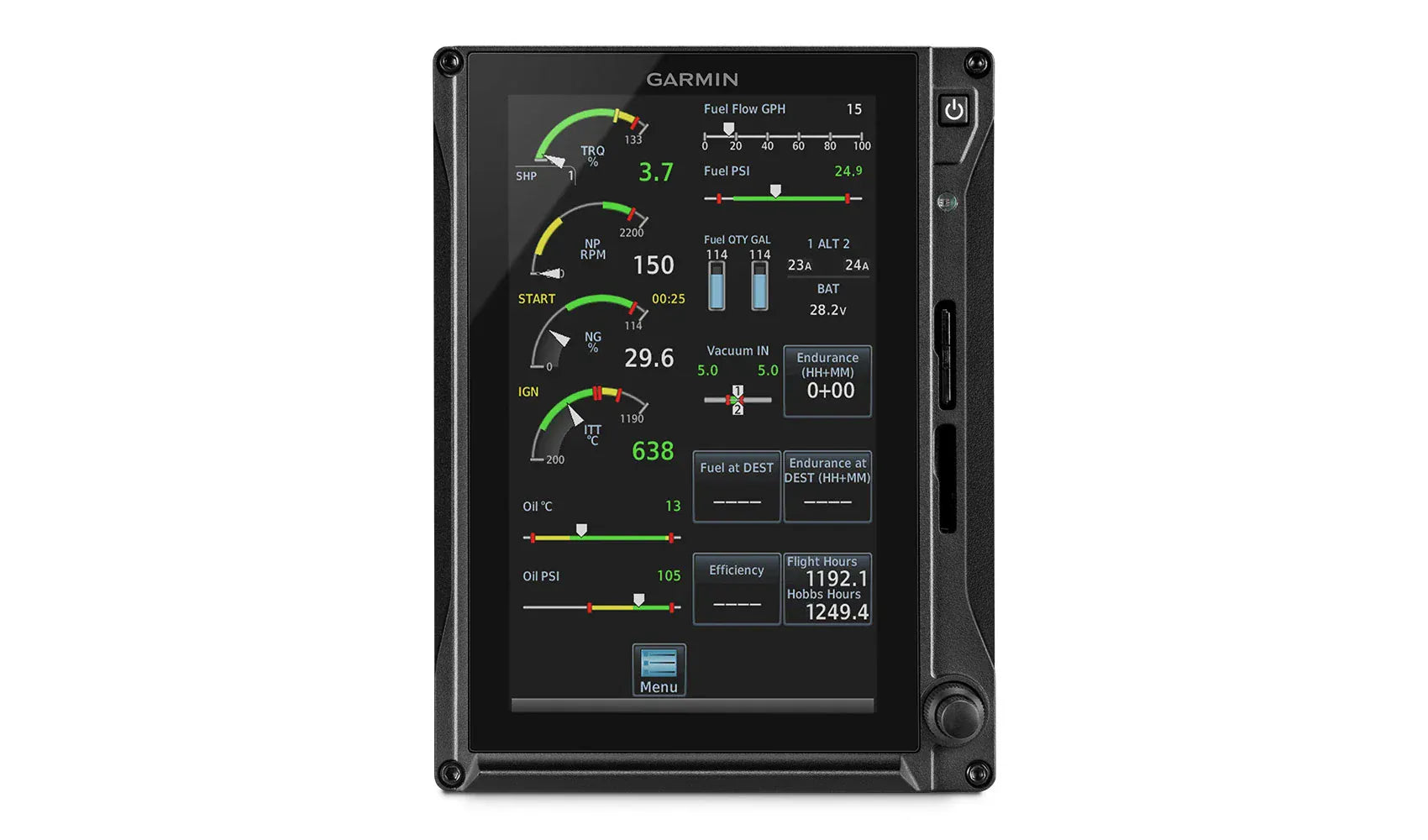

Start Timer

An automatic timer begins counting the duration of starter engagement, so you know when a starter cool-down period is required. If the engine is not started and the starter is disengaged, a cooldown timer begins counting down from zero to indicate the time that the starter is being allowed to cool.

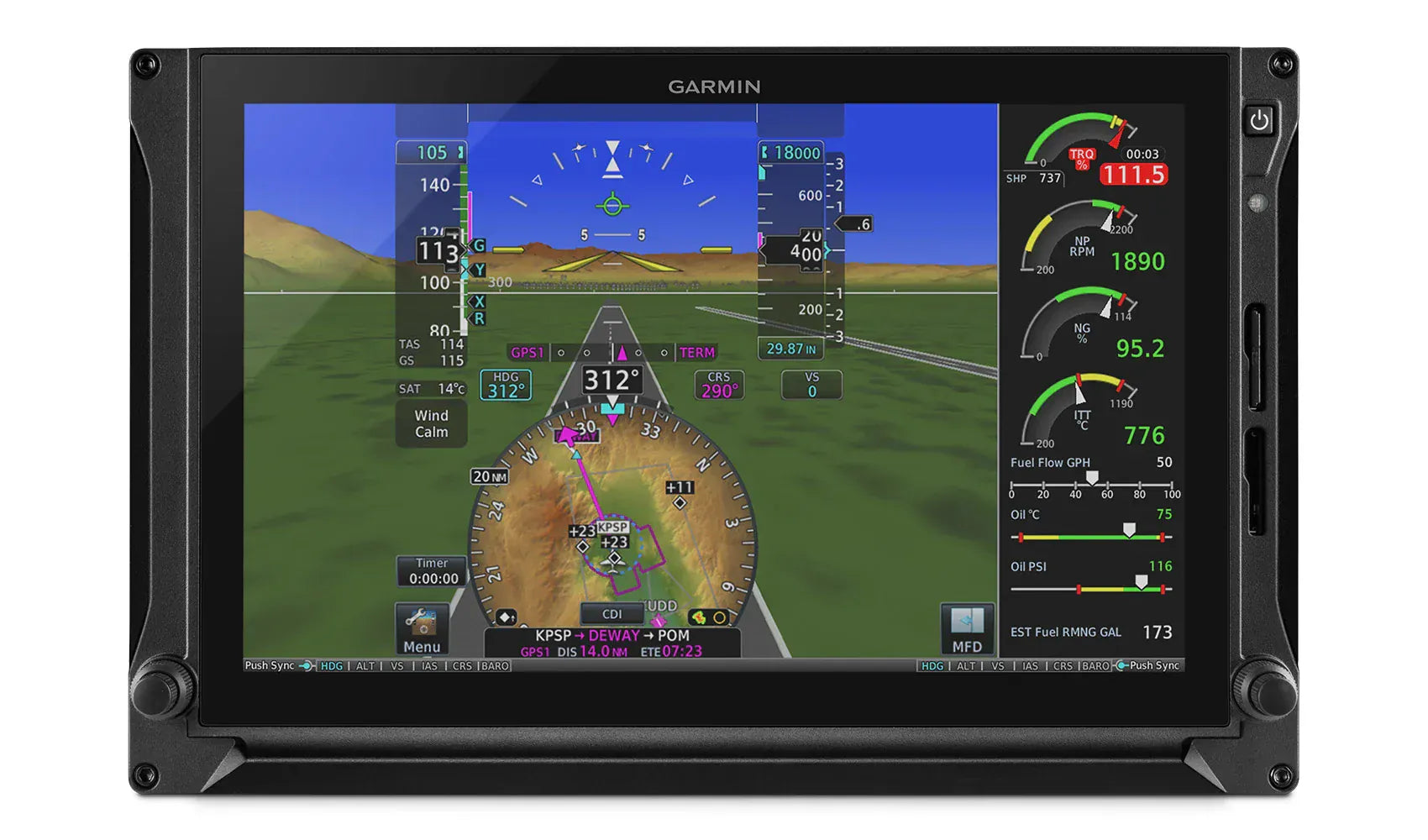

Integrated Limit Timers

Operate within specific limits for minimum time to avoid exceedances and costly maintenance. Once a limit is reached, a countdown timer is displayed to help catch the pilot’s attention and provide an opportunity to reconfigure the aircraft to mitigate the exceedance.

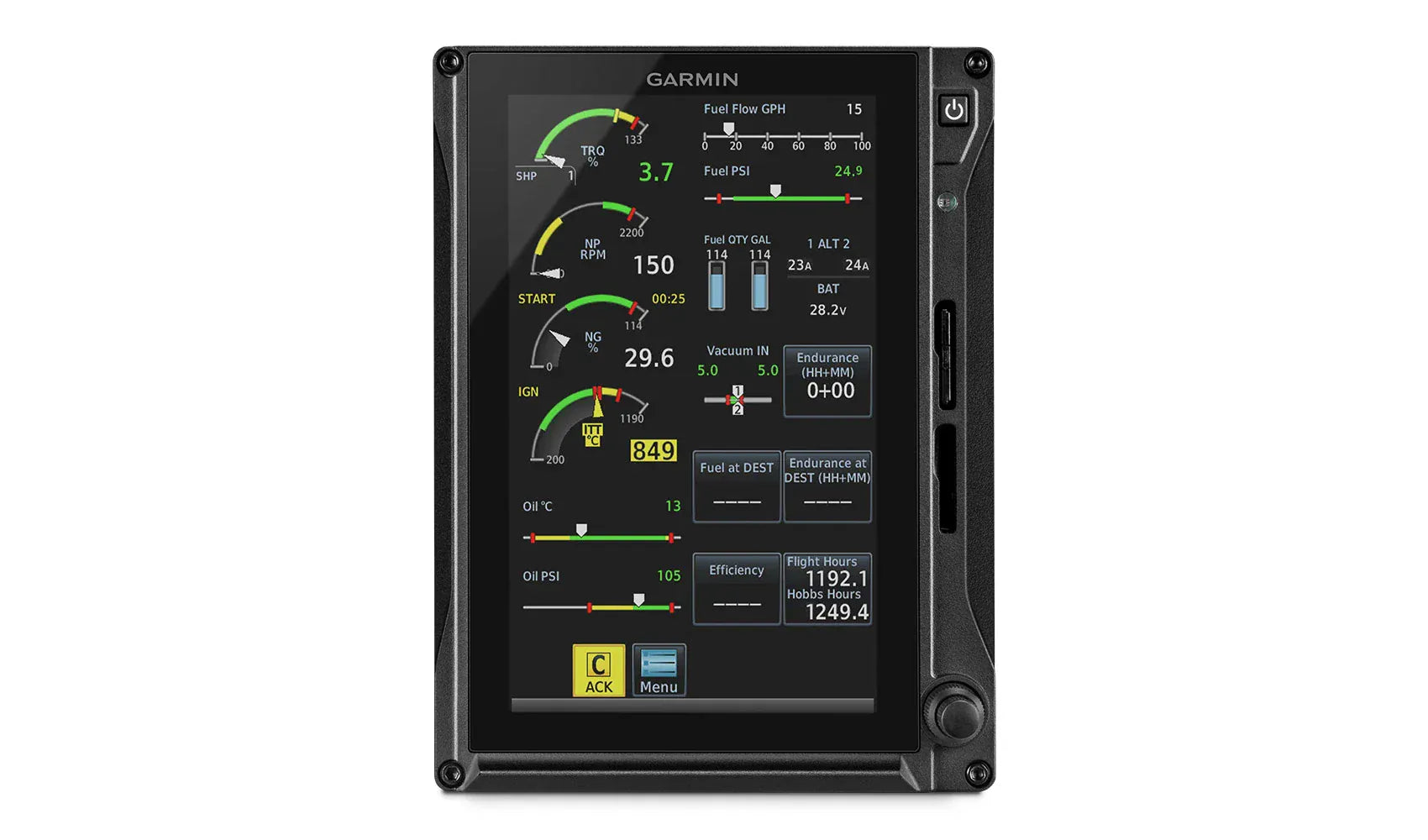

Caution Alerts

View caution alerts when you are near exceedance limits. In case of an actual exceedance event, each out-of-limit parameter is highlighted with a flashing indication on the screen to compel immediate attention.

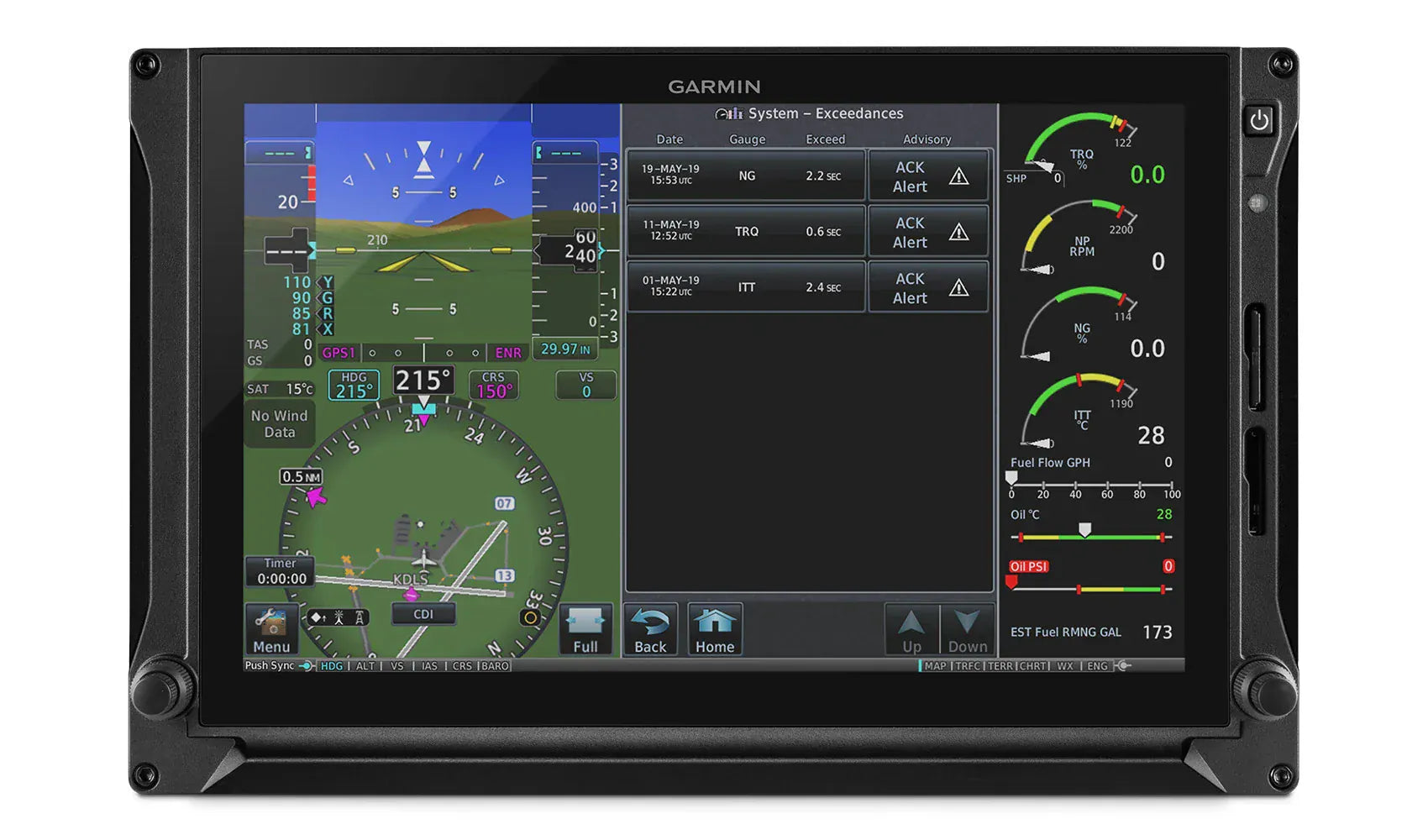

Exceedance Notifications

If any time-based limit is exceeded, you’re notified in-flight of duration and highest value of exceedance. The exceedance data is re-alerted upon landing to determine if there is any follow-up action needed once you’re on the ground.

Engine and Fuel Monitoring

See fuel and electrical information for greater awareness in flight.

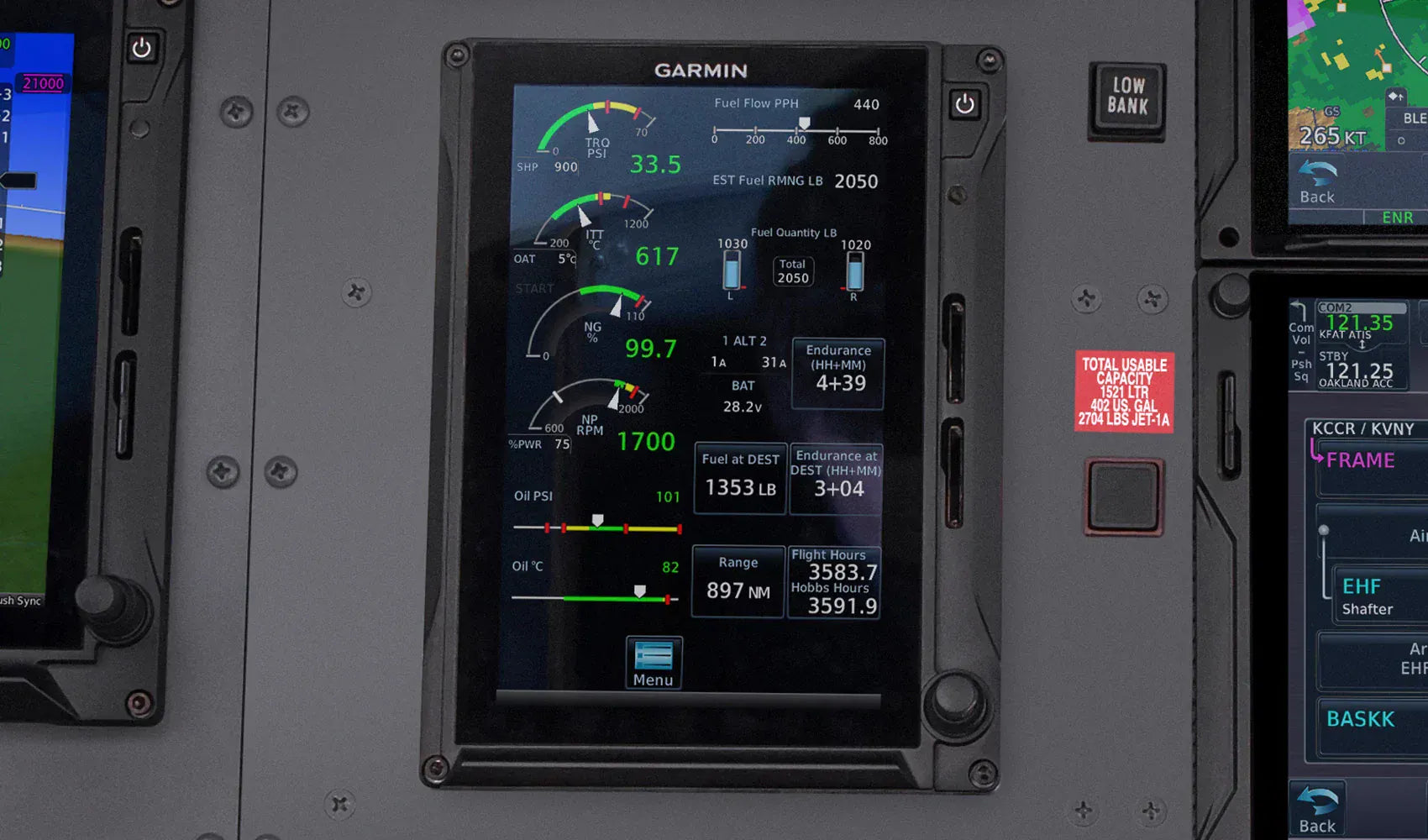

Fuel Quantity and Management

The TXi EIS system lets you enter and display fuel management calculations based on the unit’s integrated fuel computer. Once airborne, TXi EIS monitors fuel flow and GPS information to estimate how much fuel, range and flight time you have left at current settings — as well as how much fuel and endurance you’ll have left upon reaching your destination.

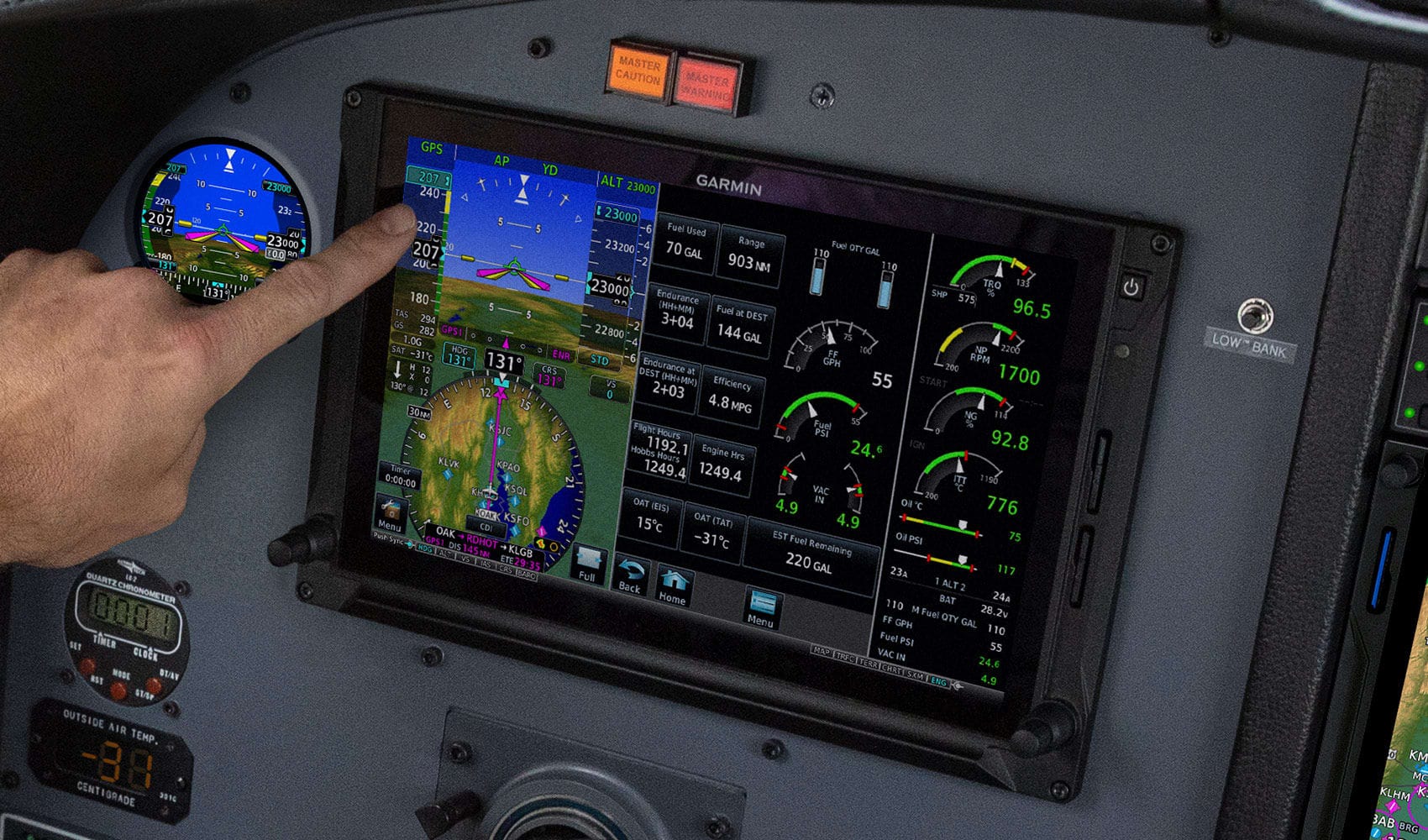

Electrical and Vacuum Gauge Monitoring

Monitor your aircraft’s electrical system, including display of the main bus voltage, alternator amperage and power load on the battery. You can add the vacuum-gauge option for aircraft that use vacuum-driven standby instruments and systems, such as de-ice boots. OAT gauge insets can be set to alert at thresholds and cleared by discrete inputs, such as pitot heat.

Automatic Data Logging

To help you maintain your engine and airframe, data logs are automatically created to record parameters such as engine and flight cycles, temperatures, exceedance analysis and more. If your TXi EIS system is paired with a GDL® 60 datalink or Flight Stream 510 wireless gateway, the data can be wirelessly transmitted to the Garmin Pilot™ app running on your compatible mobile device².

Upon landing, EIS data can be uploaded for secure storage on the flyGarmin.com® website. The recorded data can be retrieved and used by your aircraft service technicians to identify performance issues or maintenance needs in time to help avert more costly repairs later.

Supported Aircraft

Turbine aircraft models approved for TXi EIS installation include:

- Cessna 208/208B
- Cessna 425
- Cessna Citation CJ1 and CJ2
- Cessna Conquest 441 equipped with TPE-331-10N engines
- Beechcraft King Air 90 and 200 Series
- Daher TBM 700/850
- Mitsubishi MU-2B-40 Solitaire and MU-2B-60 Marquise equipped with TPE-331-10 engines
- Piaggio P.180 Avanti equipped with PT6A engines
- Pilatus PC-12/45 and 47
- Piper PA-31T Cheyenne, Cheyenne I, and Cheyenne II
- Piper PA-42 Cheyenne III
- Piper PA-46-310P/350P JetPROP and PA-46-500TP
- Twin Commander 695/695A/695B with TPE-331-10 engines

Restrictions may apply; please see your authorized Garmin installation center for details.

WHICH TXi EIS IS RIGHT FOR YOU?

Class I/II

Class I or II aircraft typically include piston aircraft weighing 6,000 lbs or less

Class III

Class III aircraft typically include piston or turbine aircraft weighing between 6,001–12,500 lbs.

Additional Information

Learn more about the benefits of adding a TXi EIS system to your turbine aircraft, and start planning your system upgrade.

Download Manuals

You can view a downloadable pilot’s guide, approved aircraft model list, STC information and more at the Garmin Support Center.

Trainer Apps

Download the free TXi Trainer app for iPad® from the App Store® — or download the PC Trainer from our website — and explore how intuitive touchscreen flight displays can be.

Webinars and Seminars

Enroll in a webinar or an in-person seminar at your local Garmin dealer to get an overview of the system and learn about the latest features.

Award-winning Support

TXi is backed by a comprehensive warranty and our award-winning avionics product support team. And with available classroom and eLearning courses, you can maximize your system’s capabilities.

¹The 7-inch display split-screen MFD/EIS format is available only for single-engine piston aircraft
²Exceedance data is not transmitted wirelessly
