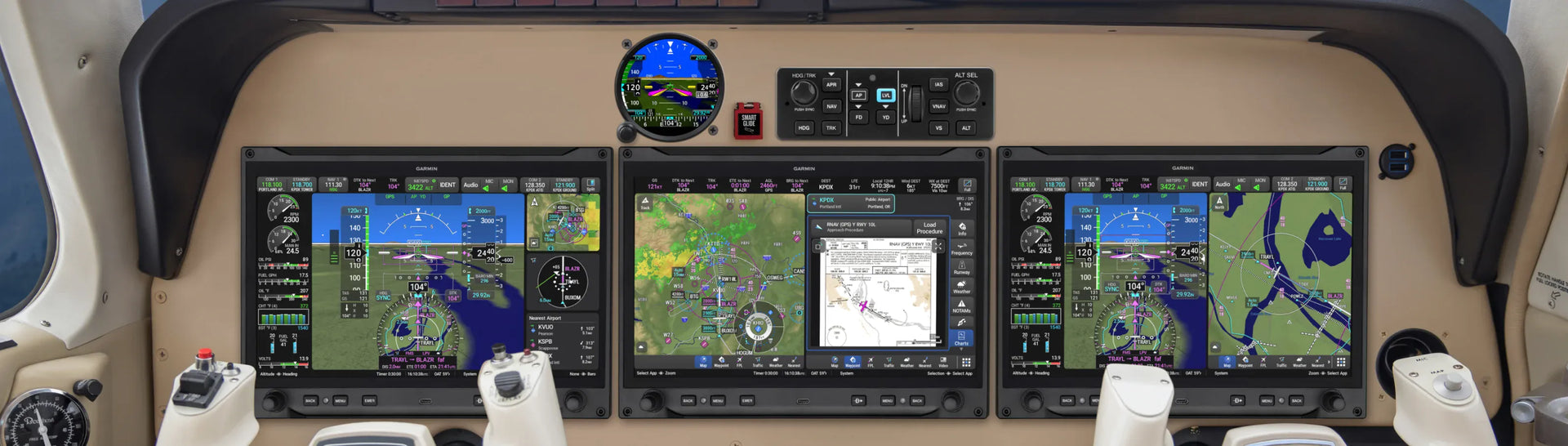

Garmin AXIS™ Flight Displays

The Center of Your Panel

AXIS™ is Garmin’s next-generation flight display. It adds advanced PFD, MFD and EIS capabilities and makes the installation much simpler. Optional built-in IFR navigation and communication put the essential tools for flight into a single system. AXIS can be installed in experimental, light sport and certified Class I/II piston-powered aircraft.

Larger, Smarter, Faster Displays

AXIS comes in an 11.6-inch format, with 8-inch landscape and 8-inch portrait formats coming soon. Every display is a full inch larger than its G3X Touch™ equivalent. Faster processors give quicker panning and zooming, and the graphics are sharper.

Fully Integrated System

AXIS 11.6-inch flight displays offer the option for built-in IFR GPS, NAV/COMM or COMM radios and audio panel with 4-place intercom. This integrated display offers the essential capabilities you require for flight — even without a traditional radio stack.

Advanced Capabilities and Safety

The latest Garmin safety-enhancing features — Runway Occupancy Awareness¹, SurfaceWatch™ runway monitoring technology, 3D SafeTaxi® diagrams, Smart Glide™ technology (when appropriately equipped) and more.

Streamlined Installation

Greatly simplify your panel and reduce installation time by choosing the industry-first, all-in-one IFR navigation and communications option for the 11.6-inch display. Upgrading from G3X Touch™? AXIS uses most of your existing sensors and components and shares the same panel cutout and screw points — a cost-efficient upgrade path.

Garmin AXIS 11.6-inch Flight Display

Big Innovation. Now For Your Panel.

AXIS is the center of your panel in every way. It combines our most advanced PFD, MFD or PFD/MFD/EIS features with a familiar Garmin feel and operation, now with higher-resolution, brighter, clearer displays. Optional integrated IFR GPS/NAV/COMM/audio capabilities allow a single 11.6-inch display to provide most critical functions as you fly. Plus, the AXIS flight display uses the same panel cutout and screw points as the 10.6-inch G3X Touch™ display, making it an easy upgrade in your aircraft.

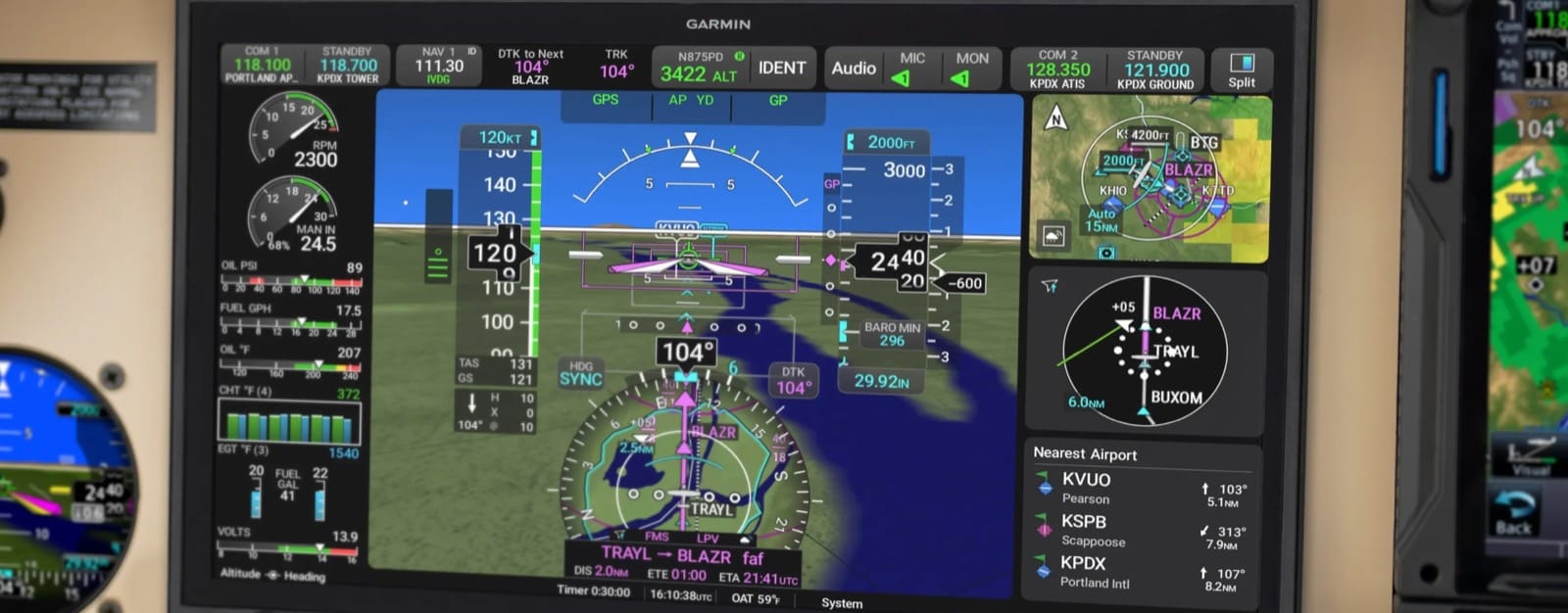

Primary Flight Display (PFD)

Upgrade your panel with a modern, reliable, all-digital PFD. Enjoy split-screen functionality with PFD/MFD/EIS windows. Add widgets on your PFD to view your flight plan, traffic, weather and more. Interact with quick access controls and view customizable data fields. Improve your situational awareness with enhanced synthetic vision technology, 3D SafeTaxi® diagrams, an MFD-like moving map on your HSI and more.

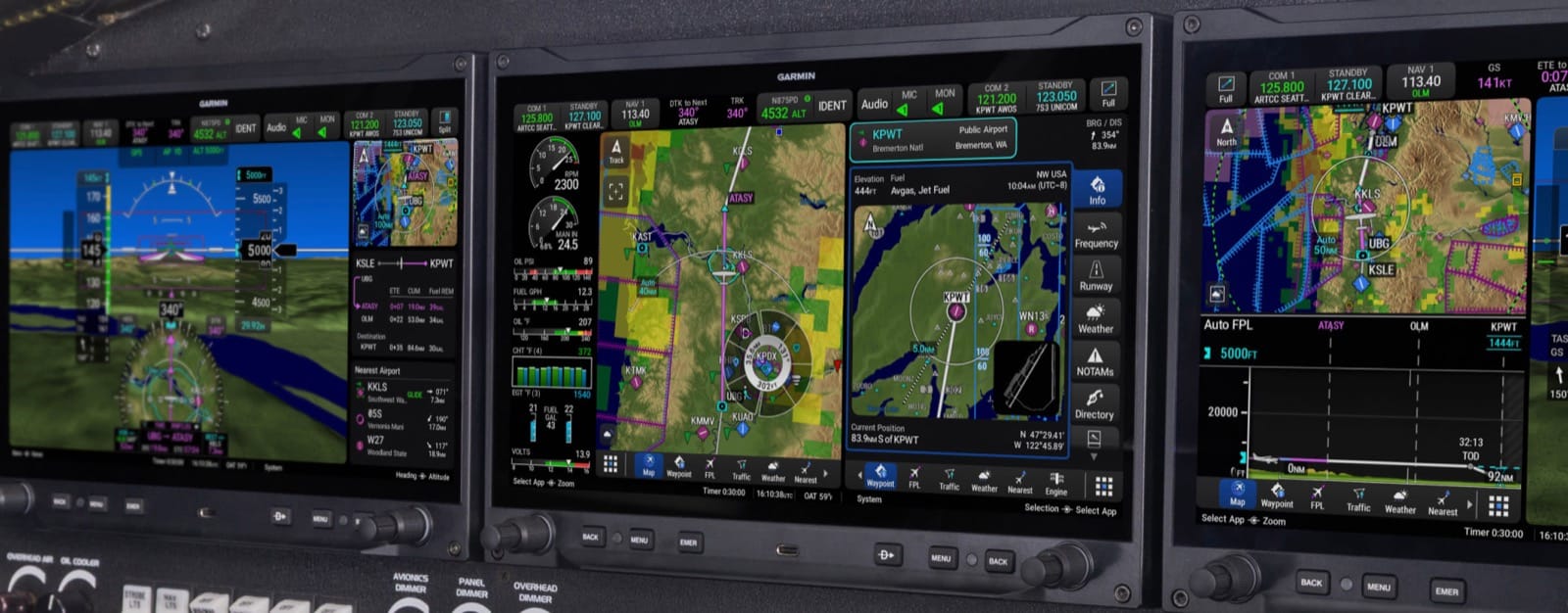

Multifunction Display (MFD)

See more critical information more clearly as you fly. A dynamic map offers overlays for ADS-B “In” traffic and weather, terrain, obstacles and more. Split-screen capability puts more information in your view. An intuitive radial menu allows you to easily touch to access waypoint information and make flight plan updates. Simple controls provide easy access to additional tools and system data for greater awareness.

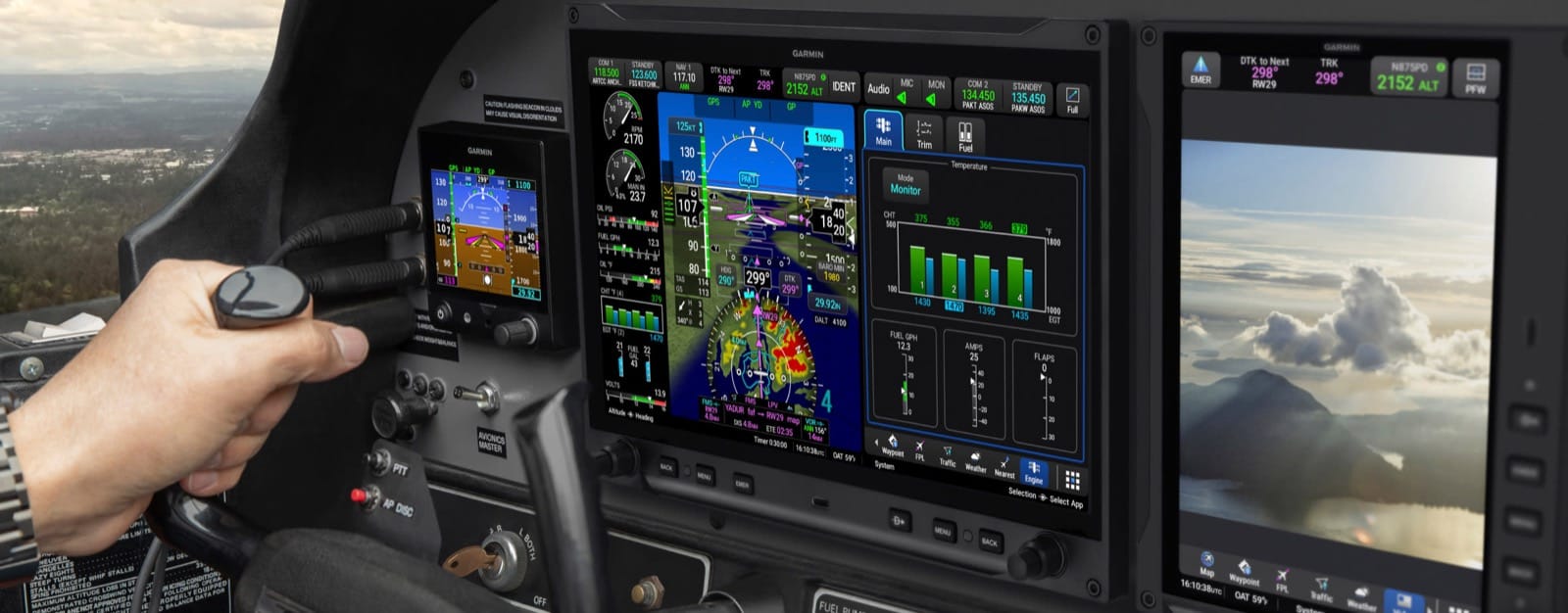

Engine Indication System (EIS)

AXIS provides an advanced primary EIS for detailed real-time data that helps you manage your engine and protect your investment. View easy-to-read gauges, a fuel computer, exceedance alerts and advisories, and lean assist mode. Tap the EIS strip for a dedicated MFD page with expanded detail.

On landing, flight and engine data logs upload automatically to flyGarmin.com® through the Garmin Pilot™ app, or through a GDL® 60 datalink with PlaneSync™ (compatibility coming soon). From flyGarmin you can share the logs with analysis services such as FlySto or SavvyAviation for engine health, maintenance and flight analysis.

AXIS EIS is available for piston-powered aircraft equipped with most normally aspirated or turbocharged 4- to 6-cylinder engines plus turbine-powered experimental aircraft. Certified twin EIS is coming soon.

Integrated IFR GPS and Nav/Comm

Make the AXIS 11.6-inch display your all-in-one flight system. Available with optional built-in IFR GPS, NAV/COMM or COMM radios plus audio panel, AXIS streamlines your cockpit by putting nearly all your most important tools in a single place — all without a radio stack. AXIS is also compatible with external GPS and radios if you choose a traditional layout.

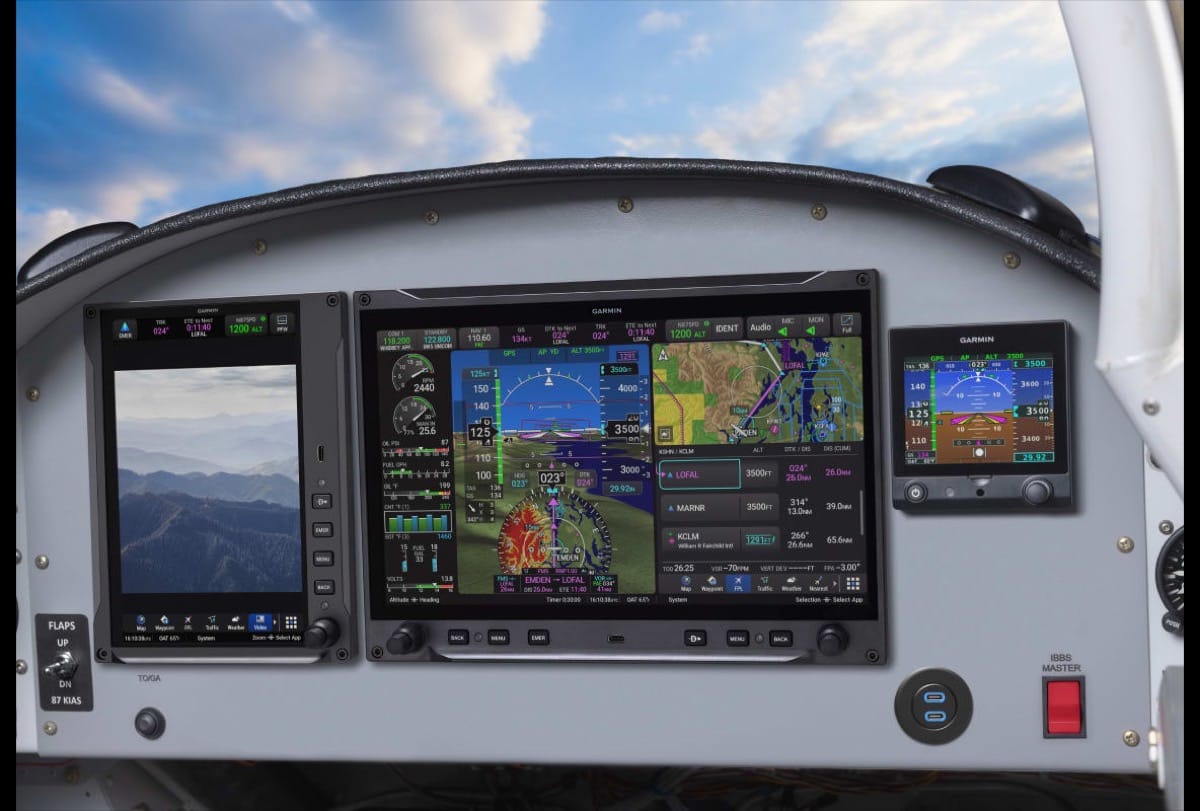

Advanced Flight Planning

Entering flight plans is simple — just tap to enter. Graphical routing helps you visualise the entire flight plan including departures, arrivals, visual and instrument approaches, holding procedures and more. Choose from GPS-guided LPV and LNAV/ILS approach capabilities or get automatic GPS-to-LOC switching so your compatible autopilot can fly complete ILS approaches.

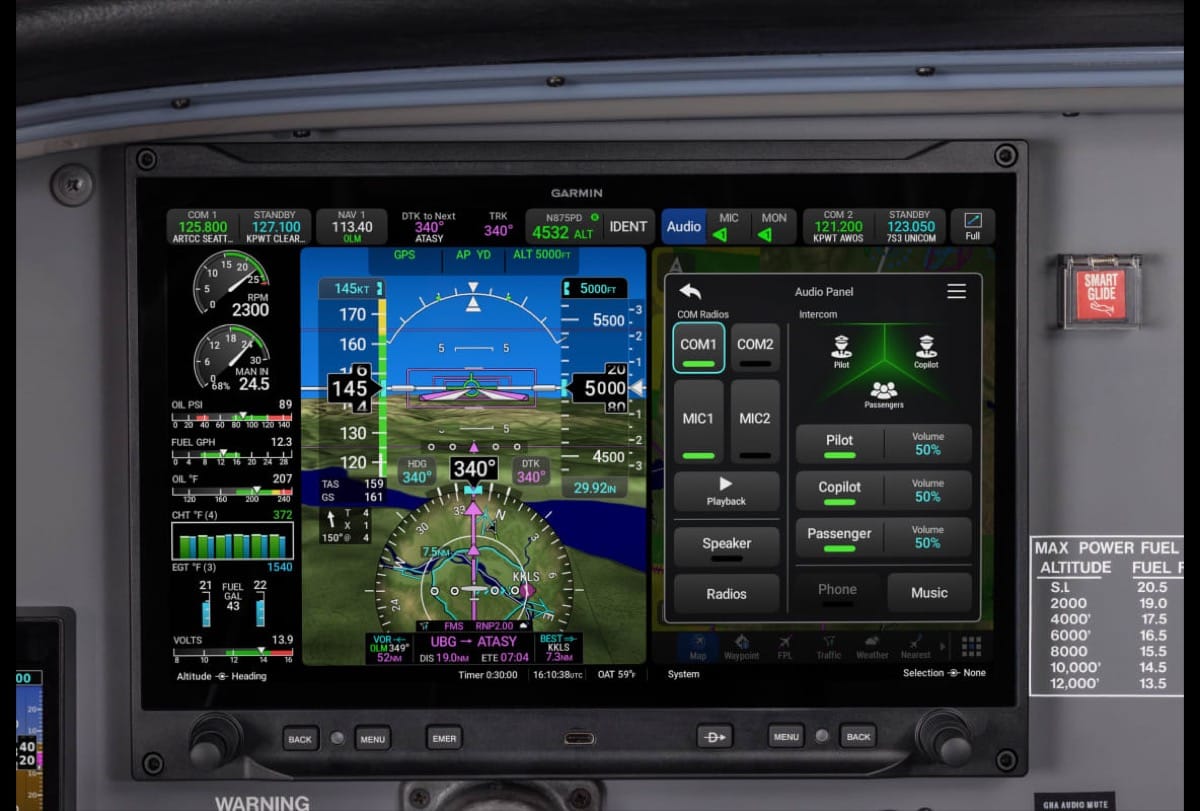

Integrated Audio Panel

Communicate clearly with the built-in 4-place intercom. AXIS supports dual-comm switching, so you can talk on or monitor a second AXIS or external COMM radio. Use COMM playback to review clearances and missed radio calls. Pair AXIS with your phone using built-in Bluetooth® to listen to music or take phone calls through your headset.

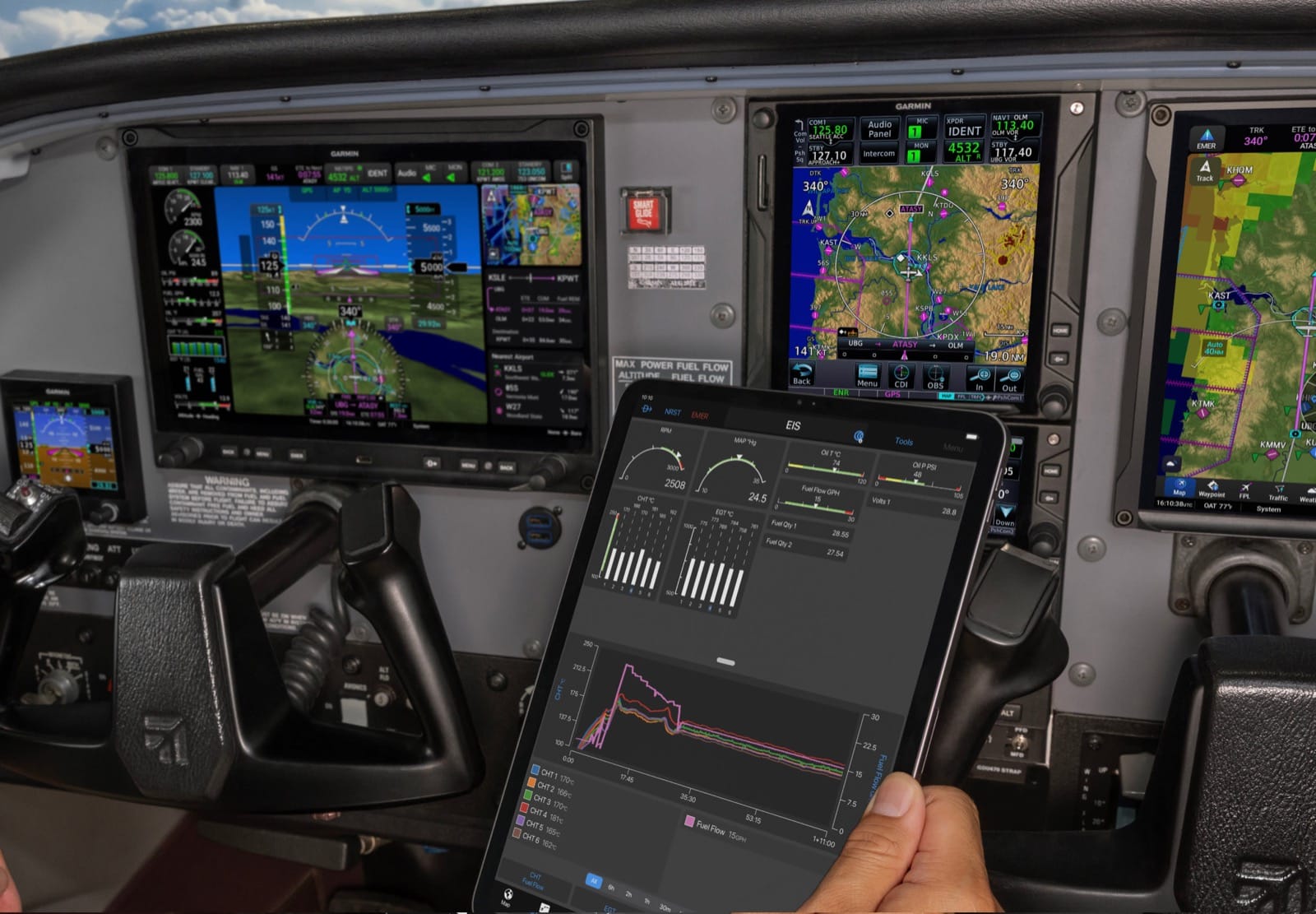

Connectivity Tools

Built-in Wi-Fi® for database downloads and Bluetooth for pairing with Garmin Pilot™ and ForeFlight Mobile. Compatible soon with the GDL 60 datalink with PlaneSync™ technology — remote aircraft status¹, automatic database updates² and automatic flight-log upload² to flyGarmin.com.

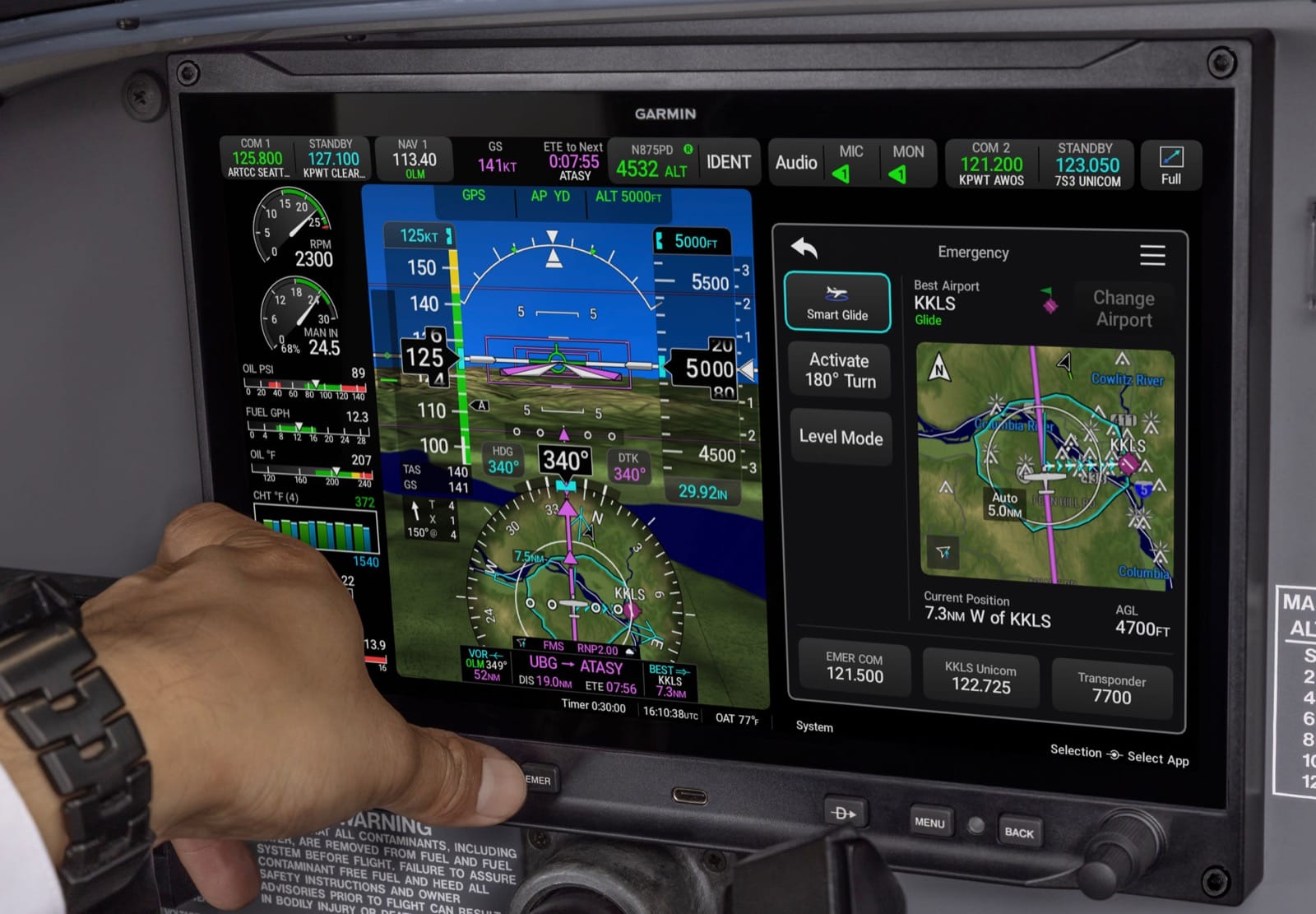

Airport and Emergency Assistance

AXIS offers capabilities that enhance safety in the airport environment, including Runway Occupancy Awareness³ and optional SurfaceWatch™. In emergencies, one touch of the EMER button activates Smart Glide™ to find a suitable airport after engine failure — with a compatible autopilot it flies best glide speed. AXIS also auto-loads CTAF and provides a 7700 shortcut.

AXIS 11.6-inch Display Options

GDU & Part No.	Certification	GPS	COMM	NAV	Audio
GDU 116NC 010-03002-00	Certified (TSO)	IFR	✓	✓	✓
GDU 116C 010-03001-00	Certified (TSO)	IFR	✓		✓
GDU 116B 010-03000-00	Certified (TSO)	VFR
GDU 116BX 010-03004-00	Experimental	VFR

AXIS 11.6-inch Specs

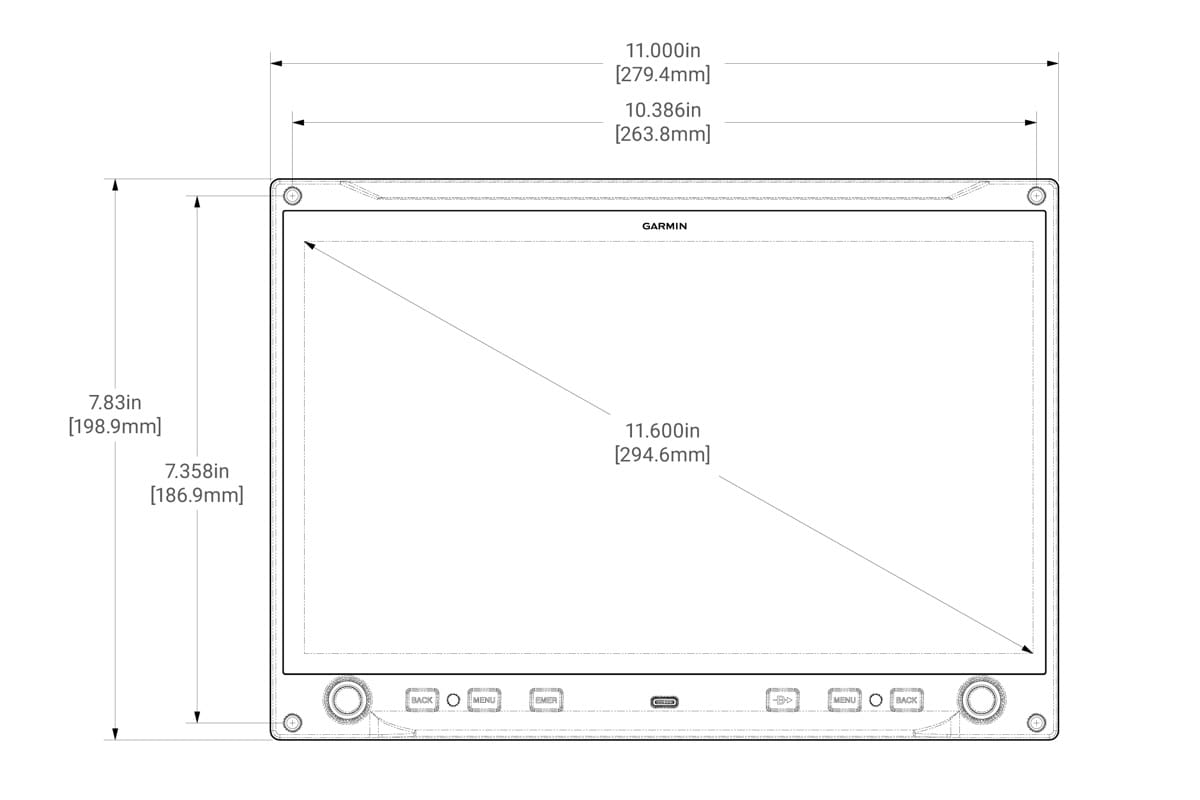

Front

Display size (diagonal): 11.6″ [294.6 mm]
Max external dimensions: 11.00″ [279.4 mm] × 7.83″ [198.9 mm] × 4.28″ [108.7 mm]

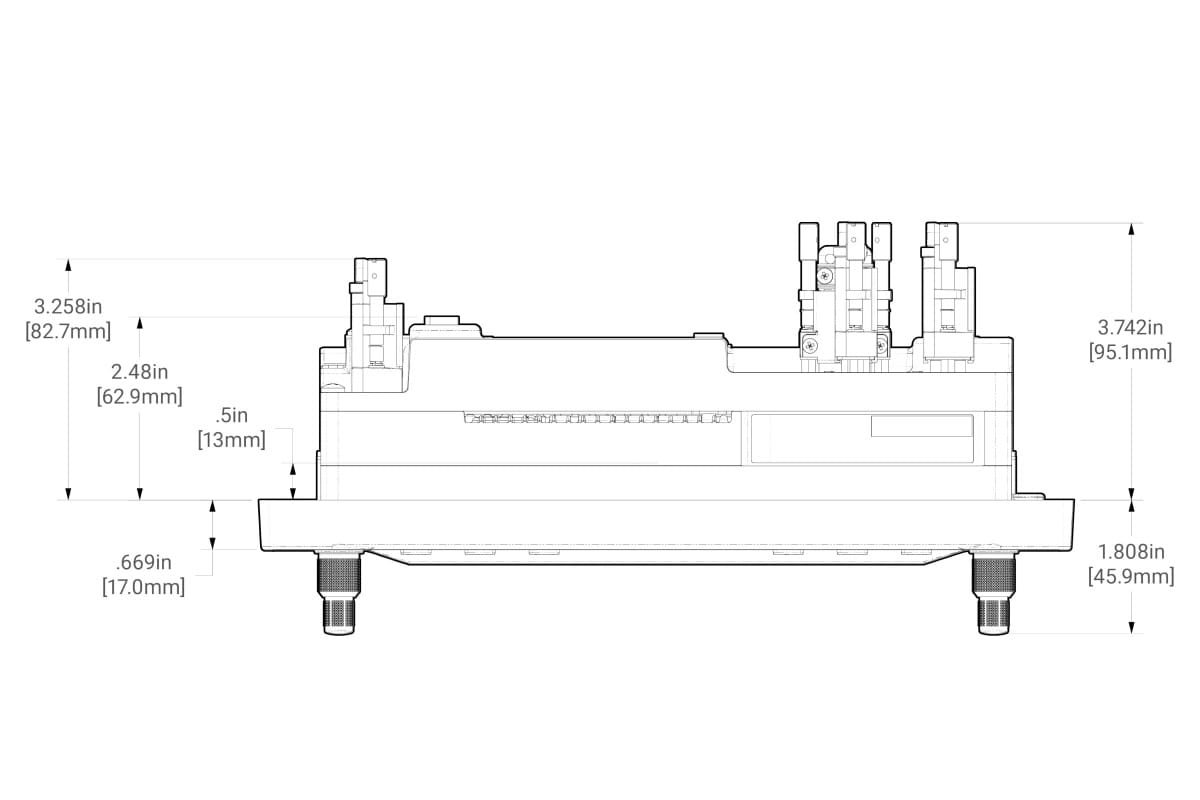

Depth

Install depth (behind panel face): 2.48″ [62.9 mm]

Garmin AXIS 8-inch Flight Displays

Powerful Displays. Versatile Installation.

AXIS 8-inch landscape and portrait format options fit most panels — either as a stand-alone PFD or as an additional display in a larger AXIS system, including an MFD or split-screen MFD/EIS. They offer a familiar Garmin feel and operation, with updated icons, fonts, colours and more. The AXIS 8″ uses the same panel cutout and screw points as the 7-inch G3X Touch, making it an easy upgrade.

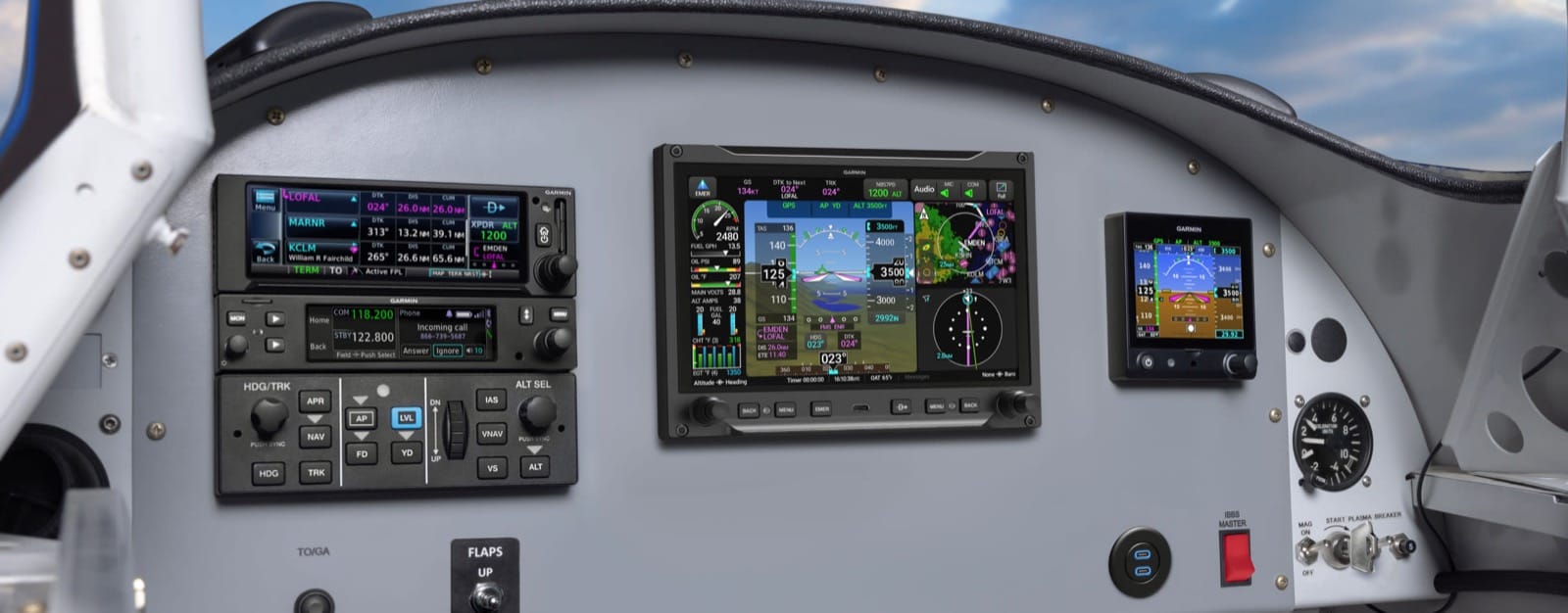

Primary Flight Display (PFD)

Upgrade your panel with a modern, reliable, all-digital PFD. Interact with quick access controls and view customisable data fields. Improve your situational awareness with enhanced synthetic vision technology, 3D SafeTaxi® diagrams, an MFD-like moving map on your HSI and more.

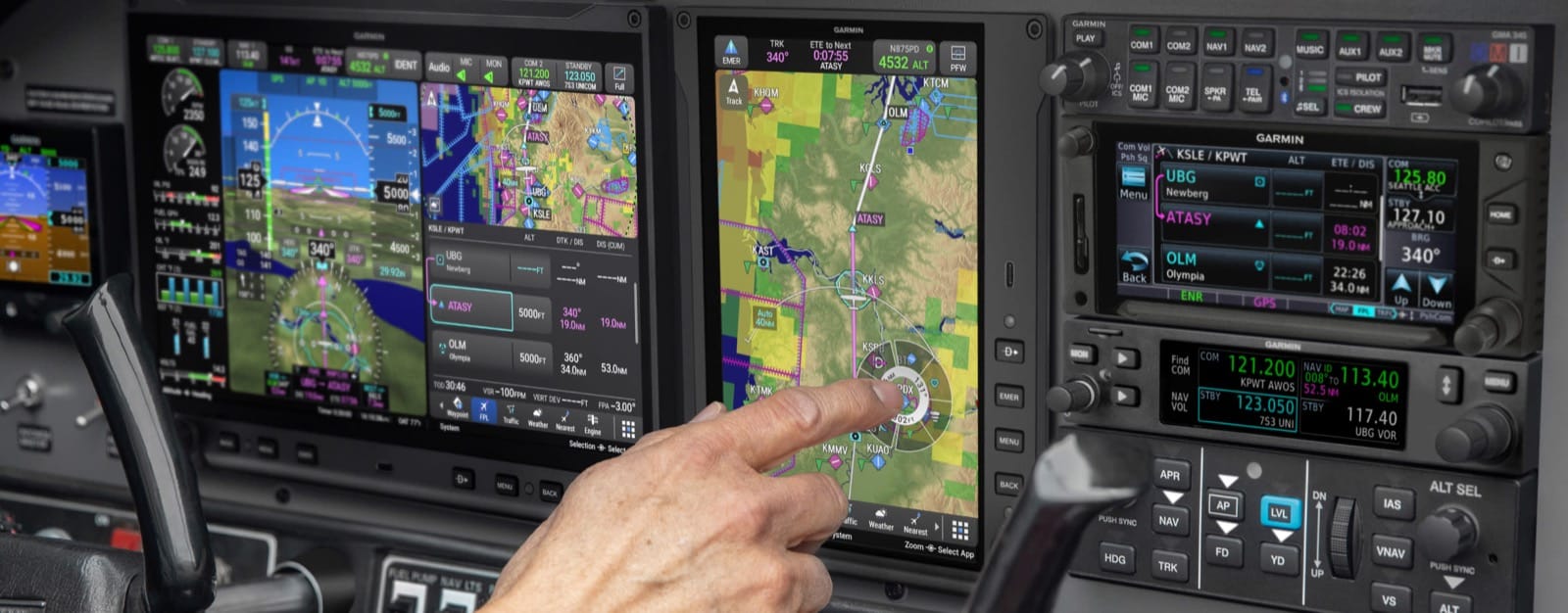

Multifunction Display (MFD)

See more critical information more clearly as you fly. A dynamic map offers overlays for ADS-B “In” traffic and weather, terrain and more. An intuitive radial menu allows easy touch access to waypoint information and flight plan updates.

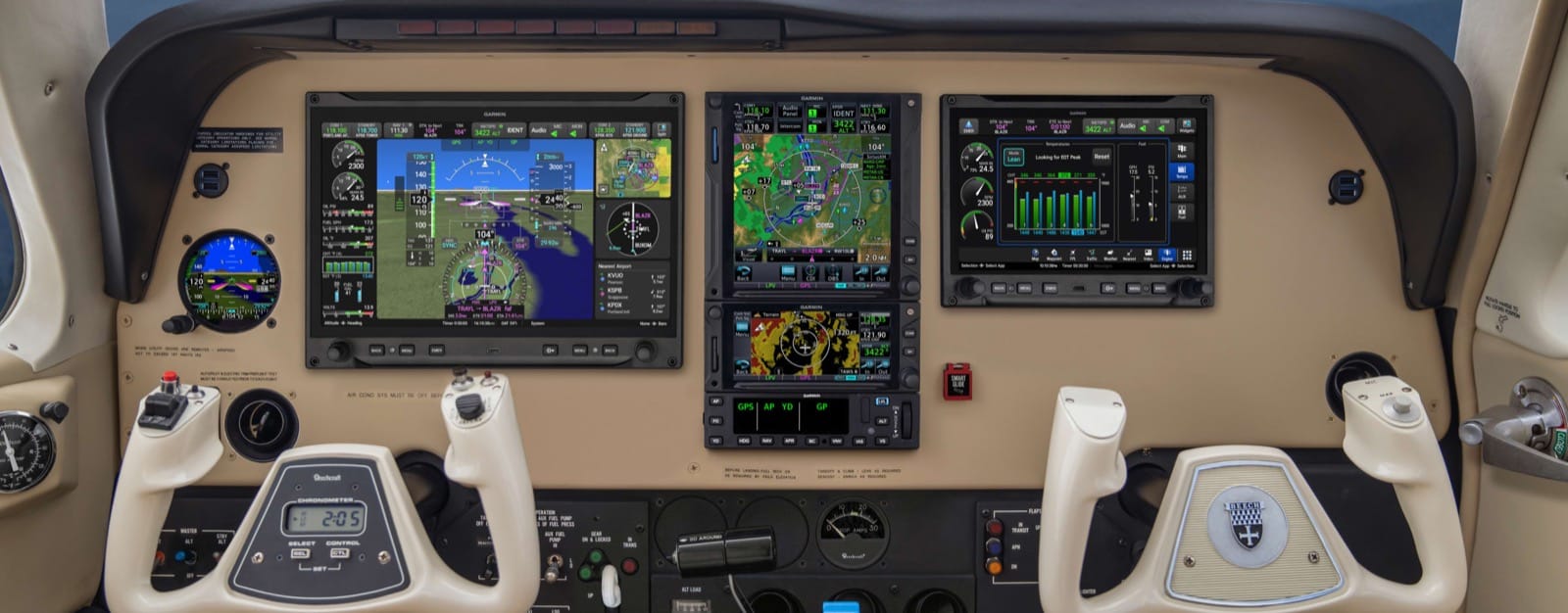

Engine Indication System (EIS)

The AXIS 8-inch display is configurable as an advanced primary EIS with detailed real-time data. View easy-to-read gauges, a fuel computer, exceedance alerts and advisories, and lean assist mode. Engine data logs upload automatically to flyGarmin.com® through the Garmin Pilot™ app or a GDL® 60 with PlaneSync™ (compatibility coming soon), and can be shared with FlySto or SavvyAviation. Available for piston aircraft equipped with most 4- to 6-cylinder engines plus turbine experimental aircraft. Certified twin EIS is coming soon.

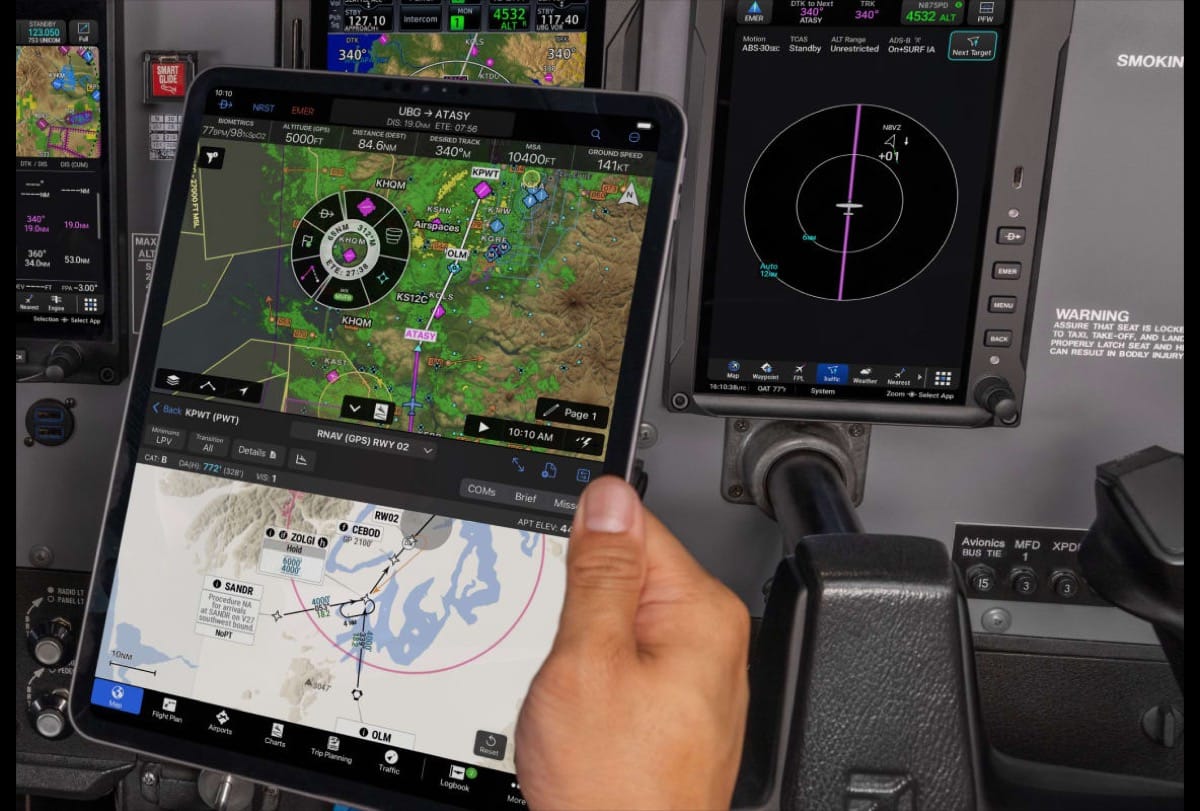

Connectivity Tools

Built-in Wi-Fi® for database downloads and Bluetooth for pairing with Garmin Pilot and ForeFlight Mobile. Soon compatible with the GDL 60 datalink with PlaneSync™ technology — remote aircraft status¹, automatic database updates² and automatic flight-log uploads².

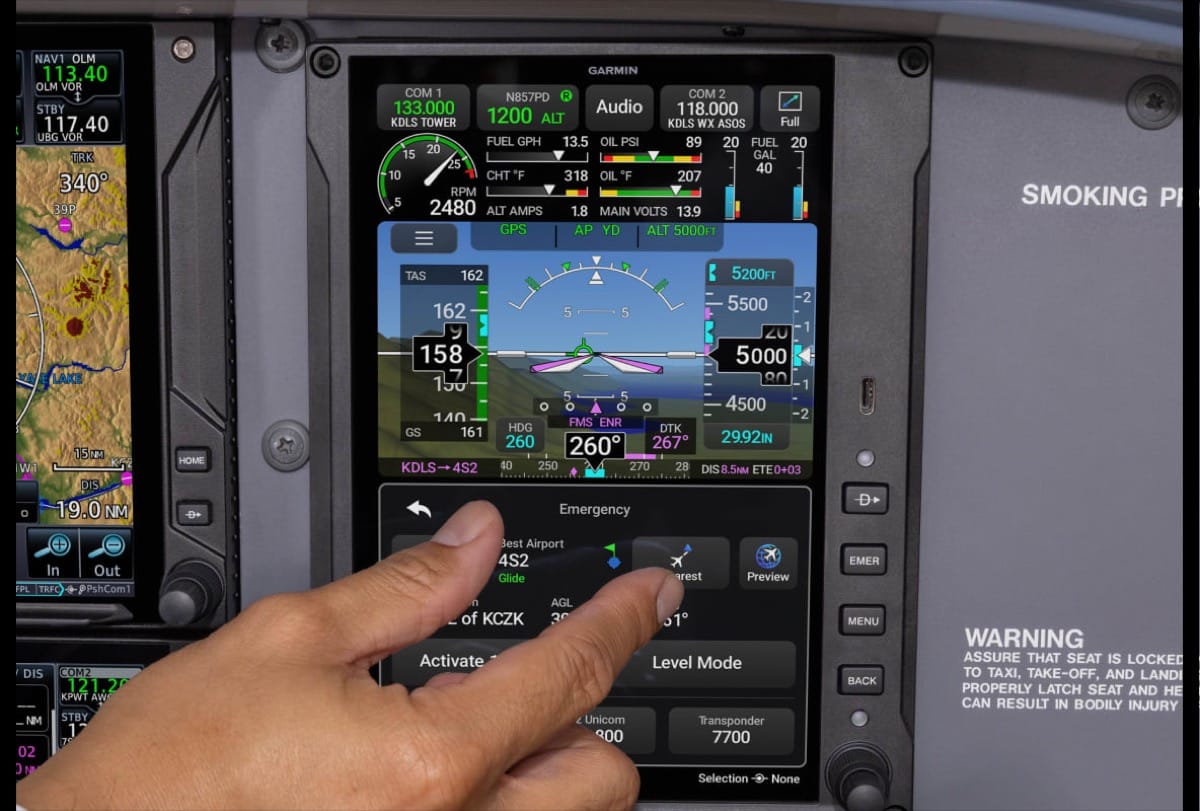

Airport and Emergency Assistance

Runway Occupancy Awareness³ and optional SurfaceWatch™ enhance airport safety. One EMER-button touch activates Smart Glide™, loads CTAF and provides a 7700 shortcut.

AXIS 8-inch Display Options

GDU & Part No.	Format	Certification	Internal GPS
GDU 80P 010-04143-00	Portrait	Certified (TSO)	VFR
GDU 80PX 010-04142-00	Portrait	Experimental	VFR
GDU 80L 010-04145-00	Landscape	Certified (TSO)	VFR
GDU 80LX 010-04144-00	Landscape	Experimental	VFR

AXIS 8-inch Specs

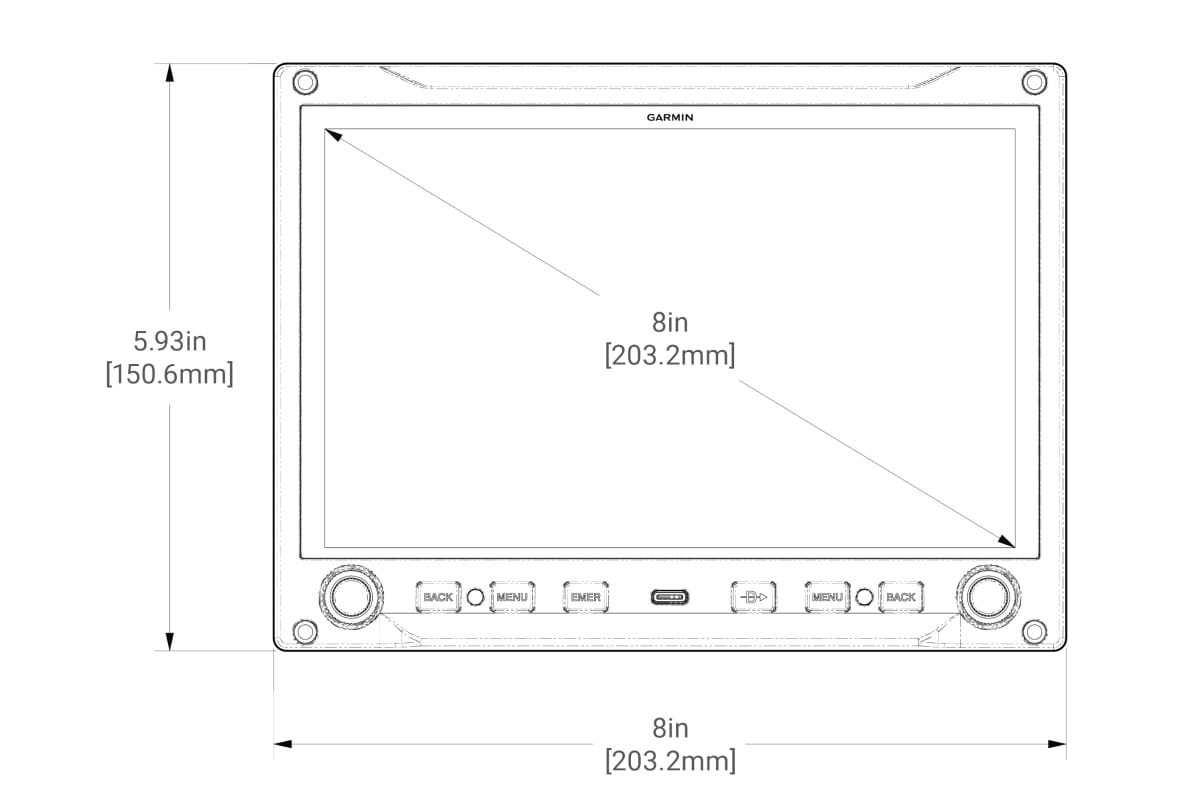

Landscape Front

Display size (diagonal): 8.0″ [203.2 mm]
Max external dimensions: 8.00″ [203.2 mm] × 5.93″ [150.6 mm] × 2.83″ [71.8 mm]

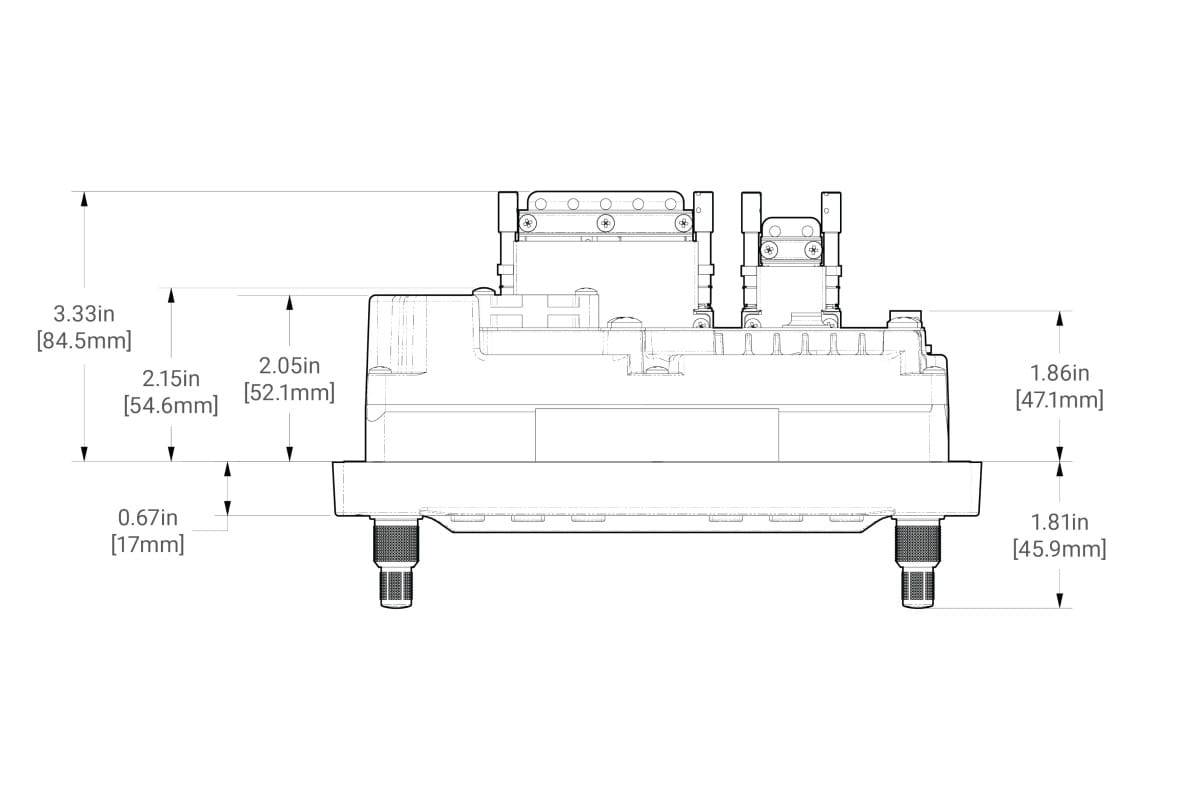

Landscape Depth

Install depth (behind panel face): 2.15″ [54.6 mm]

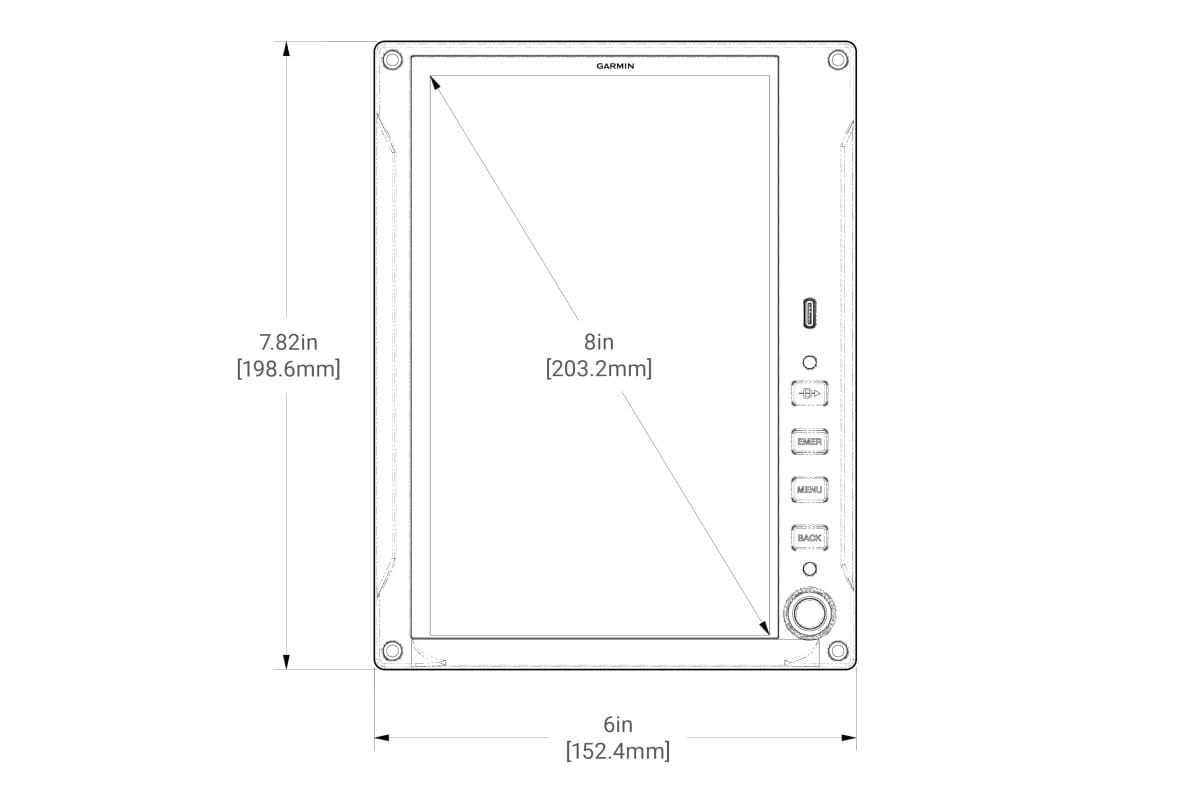

Portrait Front

Display size (diagonal): 8.0″ [203.2 mm]
Max external dimensions: 6.00″ [152.4 mm] × 7.82″ [198.6 mm] × 2.83″ [71.8 mm]

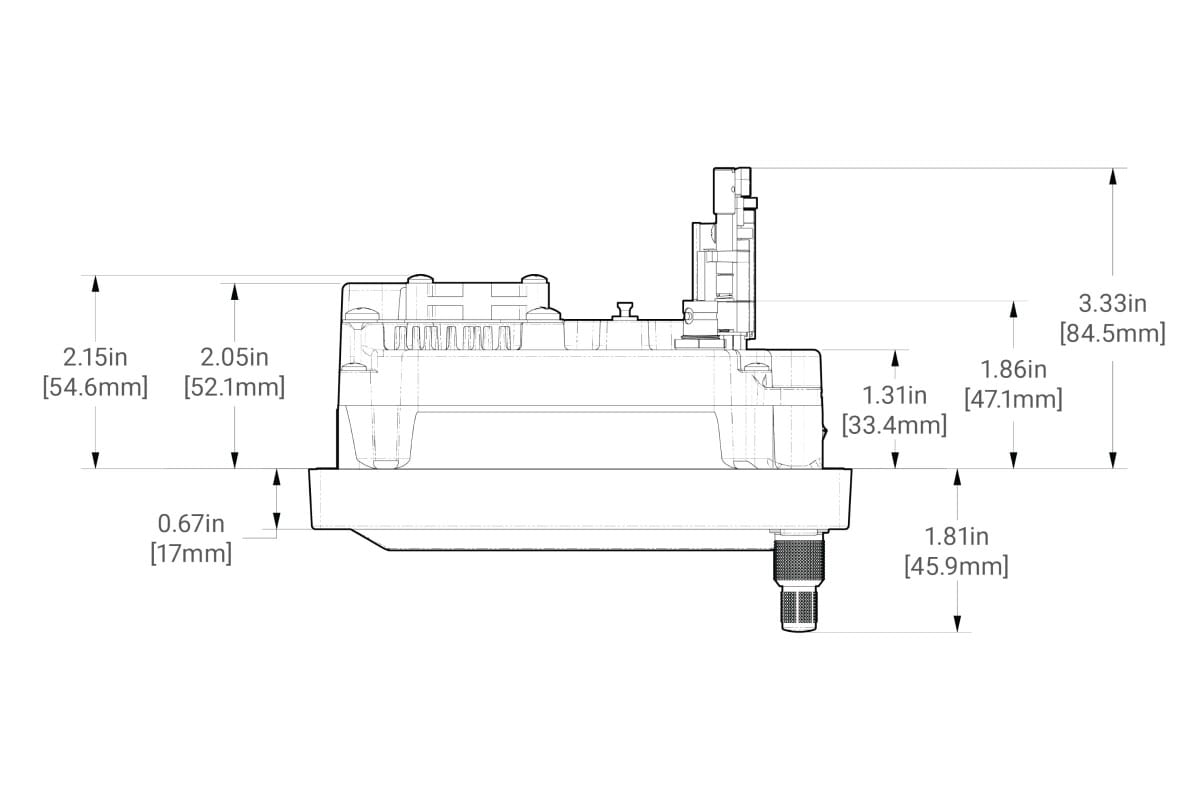

Portrait Depth

Install depth (behind panel face): 2.15″ [54.6 mm]

Build Your Panel

Create Your AXIS Panel

AXIS flight displays are the most customisable, configurable and expandable systems Garmin has ever released for homebuilt and light general aviation aircraft.

Building Your AXIS System

Learn more about how you can create your new panel with AXIS flight displays.

Step 1

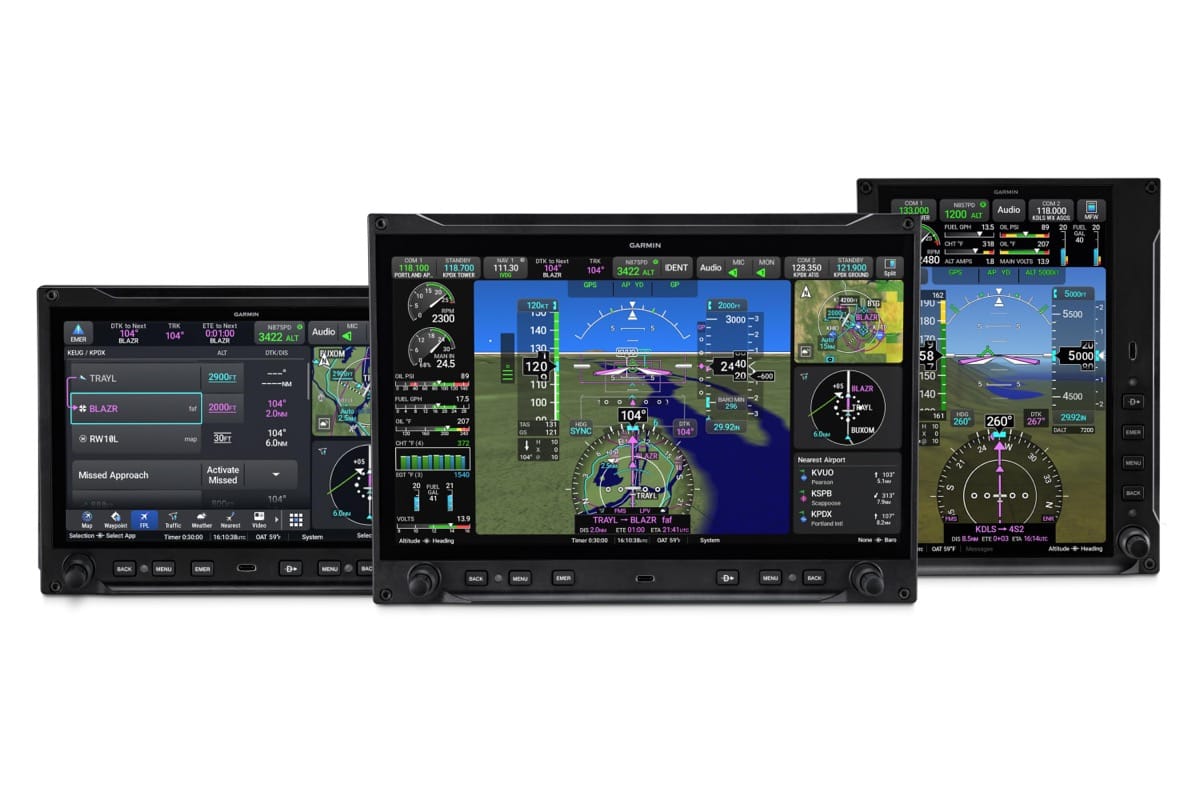

Select Your Flight Displays

AXIS offers 3 display formats. Mix and match displays to fit your panel and aircraft type. Choose up to 6 displays for experimental or 4 for certified aircraft. The 11.6″ models offer optional integrated IFR GPS, NAV/COMM or COMM radios and audio panel. Or use external GPS, radios and audio panel — AXIS is compatible with most Garmin systems.

Step 2

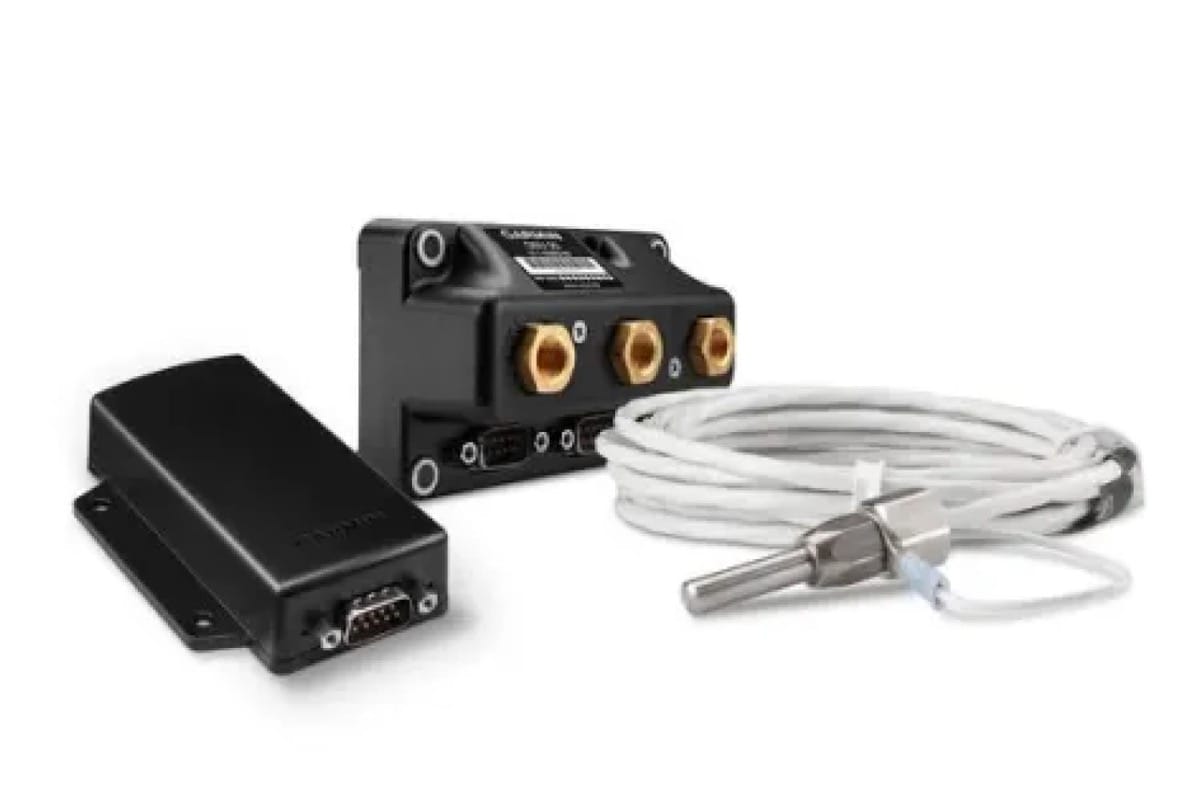

Select Your Sensors and Connector Kits

For highly accurate air data and attitude heading reference, AXIS requires a sensor LRU kit — GSU 25 ADAHRS, GMU magnetometer and GTP 59 air data probe.

Step 3

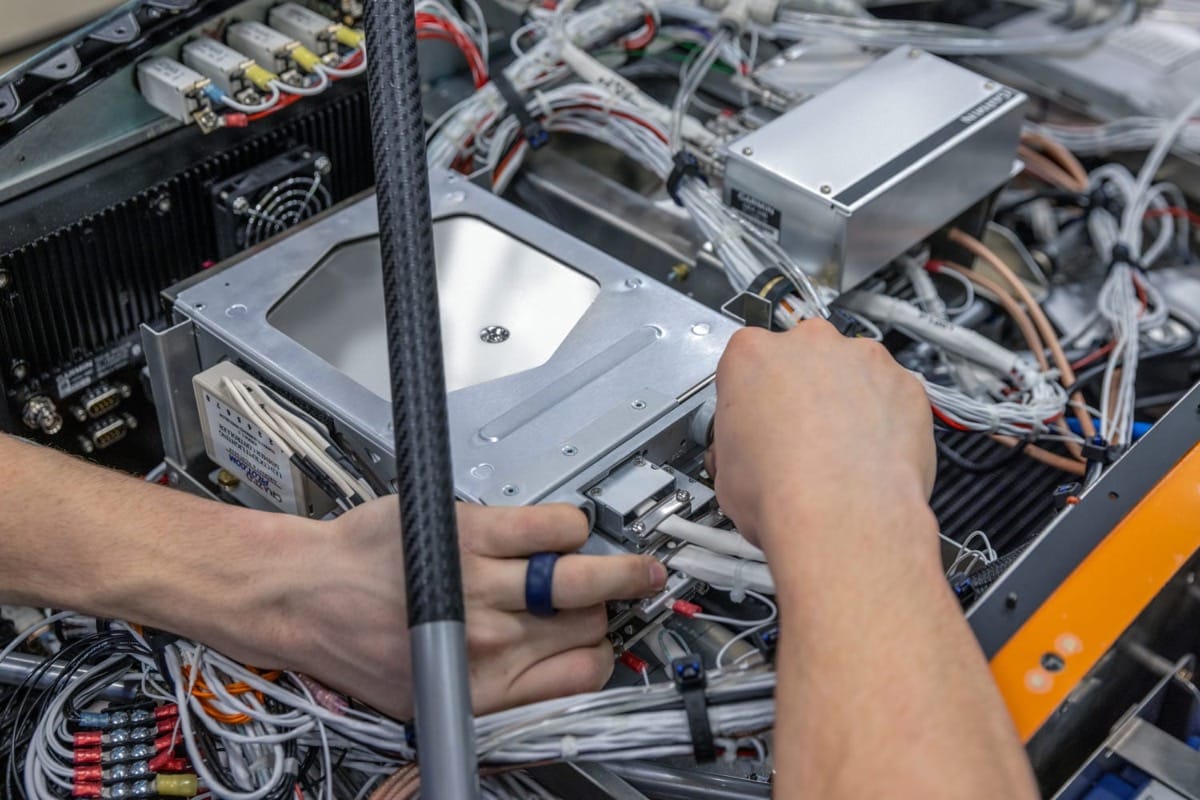

Select Your Options

Enable EIS by installing an engine interface adapter and sensors. Expand capabilities with a standby flight instrument, autopilot, datalinks, transponder and more.

System Building Guides

Garmin’s Build-A-System guides list every part you need for a new AXIS panel, from displays and install kits through sensors, engine monitoring, autopilot, radios and options. Pick your aircraft type below to see the parts for each step. Each part links to its product page in our store.

Guide for Certified (PDF) Guide for Experimental (PDF)

Step 1 Select Displays

Up to 4 AXIS displays of the 2 sizes in a single certified system. External GPS/NAV/COMM sources can also be interfaced.

Part No.	Description
010-04143-00	AXIS 8" Portrait Display, GDU 80P	View
010-04145-00	AXIS 8" Landscape Display, GDU 80L	View
010-03000-00	AXIS 11.6" Display, GDU 116B	View
010-03001-00	AXIS 11.6" Display w/ IFR GPS/COMM & Audio, GDU 116C (TSO)	View
010-03002-00	AXIS 11.6" Display w/ IFR GPS/NAV/COMM & Audio, GDU 116NC (TSO)	View

Step 1A Select Display Install Kits

Every display needs an install kit. Choose the G3X Upgrade kit if you are replacing G3X Touch. One printed material kit per aircraft.

Part No.	Description
010-14469-00	Install Kit, GDU 80P/80L, New Install	View
010-14469-10	Install Kit, GDU 80/116B, G3X Upgrade	View
010-14469-01	Install Kit, GDU 116B, New Install	View
010-14469-02	Install Kit, GDU 116C/116NC, New Install	View
010-14469-12	Install Kit, GDU 116C/116NC, G3X Upgrade	View
010-02639-00	GA 35S GPS/WAAS Antenna (required for IFR GPS displays)	View
K00-01479-00	Kit, Printed Material, GDU 80(x)/116(x) Series (1 per aircraft)	View

Step 2 Select System Sensors

ADAHRS, magnetometer and temperature probe. A maximum of 2 ADAHRS, one of each kit below.

Part No.	Description
010-04557-00	LRU Kit, AXIS Certified (GSU 25D ADAHRS, GMU 11, GTP 59)	View
K11-00066-00	Install Kit, AXIS Certified	View
010-02003-05	LRU Kit (GMU 44B, GSU 75, GTP 59)	View
K11-00019-50	Install Kit, GMU 44B, GSU 75	View

Step 3 Select Standby Flight Instrument

Certified AXIS installations require a standby instrument. Choose the GI 275 +AP if you are keeping a non-Garmin autopilot.

Part No.	Description
K10-00280-01	G5 for Certificated Aircraft	View
010-02326-10	Kit, GI 275 ADAHRS, Class I/II	View
010-02326-20	Kit, GI 275 ADAHRS +AP, Class I/II	View

Step 4 Select Engine/Airframe Interface

One GEA module per engine. GEA 110 is for firewall-forward mounting and requires an AXIS COMM or NAV/COMM display.

Part No.	Description
010-02770-11	GEA 24B, Unit Only, PMA	View
011-02886-01	GEA 24 Connector Kit, PMA	Ask us
010-01329-01	GEA 110, Unit Only	View
011-03527-50	GEA 110 Connector Kit	View
011-03527-51	GEA 110 Connector Kit, Sealed (remote-mounted GEA 110)	View
011-03941-00	GEA 110 Install Tray	View

Step 4A Select Engine Sensors

Kits cover 4- and 6-cylinder Lycoming and Continental engines. Other engines may need individual sensors.

Part No.	Description
K00-01010-11	Sensor Kit, 4-cyl Lyc/Cont (CHT, EGT, oil temp, oil pressure)	View
K00-01011-11	Sensor Kit, 6-cyl Lyc/Cont (CHT, EGT, oil temp, oil pressure)	View

Step 5 Select Autopilot

AXIS integrates with GFC™ 500. GFC 600 integration follows in a future update. Approved aircraft lists are linked on the Approved Aircraft & Interfaces tab.

Part No.	Description
—	GFC 500 Autopilot (components depend on aircraft)	Browse

Step 6 Select IFR GPS, Radios and Audio Panel

If your AXIS display has no built-in IFR GPS or radio, pair it with one of these.

Part No.	Description
010-02002-05	GTN 750Xi, IFR GPS/NAV/COMM/MFD	View
010-01999-05	GTN 650Xi, IFR GPS/NAV/COMM/MFD	View
010-02232-51	GNC 355, IFR GPS and COMM Radio	View
010-01823-50	GNX 375, IFR GPS and ADS-B In/Out Transponder	View
010-01822-50	GPS 175, IFR GPS Navigator	View
010-02481-01	GNC 215, NAV/COMM Radio	View
010-02480-01	GTR 205, COMM Radio (optional 4-place intercom & audio panel)	View
010-02479-00	GTR 205R, Remote COMM Radio	Ask us
010-01319-03	GMA 345, Audio Panel (up to 6-place intercom)	View
010-01471-11	GMA 245R, PMA, Remote Audio Panel (up to 6-place intercom)	Ask us

Step 7 Select Transponder & Datalinks

GTX 335 for ADS-B Out. GTX 345 adds ADS-B In traffic and weather (weather is US only).

Part No.	Description
010-01214-01	GTX 335, ADS-B Out Transponder	View
010-01215-01	GTX 335R, ADS-B Out Transponder, Remote-mount	View
010-01216-06	GTX 345, ADS-B In/Out Transponder	View
010-01217-06	GTX 345R, ADS-B In/Out Transponder, Remote-mount	View
010-01561-15	GDL 50R Datalink, PMA, ADS-B Receiver, Remote-mount	Ask us
010-01561-55	GDL 51R Datalink, PMA, SiriusXM Receiver, Remote-mount	Ask us
010-01561-35	GDL 52R Datalink, PMA, SiriusXM & ADS-B Receiver, Remote-mount	Ask us
011-04170-00	GDL Remote Mount Connector Kit, PMA (required to connect GDL)	View
010-12498-50	GA 24 TNC SiriusXM Antenna (required for SiriusXM on GDL)	View

Step 8 Additional Options

Feature enablements and accessories. GAD 29 may be needed with an older GPS navigator, or for navigation on a G5.

Part No.	Description
006-B5211-00	AXIS ChartView™ Enablement	View
006-B5211-01	AXIS SurfaceWatch™ Enablement	View
006-B5211-02	AXIS TAWS-B Enablement	View
010-02895-00	GHA 15, PMA, Height Advisor	View
011-05278-00	GHA 15 Connector Kit	View
011-06097-00	GHA 15 Install Kit	View
011-06677-00	GHA 15 Levelling Install Kit	View
010-02975-01	GCO 14, Carbon Monoxide Detector	View
010-01172-21	GAD 29D, PMA, ARINC 429 Interface Adapter	View
011-03271-00	GAD 29 Connector Kit (required to connect AXIS)	View
010-01525-11	GAD 27, PMA, Electrical Interface Adapter	View
011-03877-01	GAD 27 Connector Kit (required to connect AXIS)	View
010-01074-71	GAP 26, PMA, Self-Regulating	View

Certified systems take up to 4 AXIS displays. Typically no extra Garmin parts are needed to upgrade from G3X Touch. We confirm the exact parts list for your aircraft before you order.

Step 1 Select Displays

Up to 6 AXIS displays in a single system. Experimental aircraft can use the non-TSO AXIS X models. Built-in IFR GPS and radios come only in the certified 116C/116NC, which can be mixed into an experimental system.

Part No.	Description
010-04142-00	AXIS 8" Portrait Display, GDU 80PX	View
010-04144-00	AXIS 8" Landscape Display, GDU 80LX	View
010-03004-00	AXIS 11.6" Display, GDU 116BX	View
010-03001-00	AXIS 11.6" Display w/ IFR GPS/COMM & Audio, GDU 116C (TSO)	View
010-03002-00	AXIS 11.6" Display w/ IFR GPS/NAV/COMM & Audio, GDU 116NC (TSO)	View

Step 1A Select Display Install Kits

Every display needs an install kit. Choose the G3X Upgrade kit if you are replacing G3X Touch. One printed material kit per aircraft.

Part No.	Description
010-14468-00	Install Kit, GDU 80PX/LX, New Install	View
010-14468-10	Install Kit, GDU 80X/116BX, G3X Upgrade	View
010-14468-01	Install Kit, GDU 116BX, New Install	View
010-14469-02	Install Kit, GDU 116C/116NC, New Install	View
010-14469-12	Install Kit, GDU 116C/116NC, G3X Upgrade	View
010-02639-00	GA 35S GPS/WAAS Antenna (required for IFR GPS displays)	View
K00-01479-00	Kit, Printed Material, GDU 80(x)/116(x) Series (1 per aircraft)	View

Step 2 Select System Sensors

GSU 25 ADAHRS, GMU 11 or GMU 22 magnetometer and GTP 59 OAT probe. Aircraft above 300 KIAS should use the GSU 25D / GMU 22 kit.

Part No.	Description
010-04556-00	LRU Kit, AXIS X w/ GSU 25C, GMU 11, GTP 59	View
010-04556-01	LRU Kit, AXIS X w/ GSU 25D, GMU 22, GTP 59	View
010-01071-55	GSU 25C, Unit Only (supplemental)	View
010-01071-56	GSU 25D, PMA, Unit Only (supplemental)	View
010-01788-00	GMU 11, Unit Only (supplemental)	View

Step 2A Select System Sensor Install Kits

One install or connector kit per sensor, including any supplemental sensors.

Part No.	Description
K10-00181-00	GSU 25 Connector Kit	View
011-04349-90	GMU 11 Install Kit	View
011-00871-10	GMU 22 Install Kit	View

Step 3 Select Standby Flight Instrument

Optional standby for extra redundancy. For OAT on the G5, use GAD 13 with GTP 59. The AXIS LRU kits include a GTP 59 that can be shared with the G5.

Part No.	Description
010-01485-01	G5, Unit Only	View
010-12493-11	G5 Installation Kit (required)	View
010-12493-02	G5 Battery Pack	View
010-02203-K0	Kit, GAD 13, GTP 59, Connection Kit	Ask us
010-02203-00	GAD 13, FAA-PMA, Unit Only	View
011-03002-10	Connector Kit, 9-pin with CAN Term, PMA	View

Step 4 Select Engine/Airframe Interface

One GEA module per engine, unless the engine has more than 6 cylinders. GEA 110 is for firewall-forward mounting and requires an AXIS COMM or NAV/COMM display.

Part No.	Description
010-02770-00	GEA 24B, Unit Only	View
011-02886-00	GEA 24 Connector Kit	View
010-01329-01	GEA 110, Unit Only	View
011-03527-50	GEA 110 Connector Kit	View
011-03527-51	GEA 110 Connector Kit, Sealed (remote-mounted GEA 110)	View
011-03941-00	GEA 110 Install Tray	View

Step 4A Select Engine Sensors

Kits for 4- and 6-cylinder Lycoming/Continental and Rotax 912UL. Individual sensors are listed for other engines.

Part No.	Description
K00-00512-10	Sensor Kit, 4-cyl Lyc/Cont (CHT, EGT, oil temp, fuel flow, ammeter shunt, oil pressure, MAP)	View
K00-00513-10	Sensor Kit, 6-cyl Lyc/Cont (CHT, EGT, oil temp, fuel flow, ammeter shunt, oil pressure, MAP)	View
K00-00514-10	Sensor Kit, Rotax 912UL (EGT, fuel pressure, MAP, ammeter shunt, RPM)	View
011-05783-10	Pressure Sensor, GPT 15G	View
011-05783-20	Pressure Sensor, GPT 75G	View
494-10001-00	Fuel Flow, 1/4" Female NPT	View
494-50005-00	RPM, Hall Effect, Slick Magneto	View
494-50005-01	RPM, Hall Effect, Bendix Magneto	View
494-70002-00	TIT, Type K Thermocouple, 7/16-20 Bayonet	View
494-70005-00	Carb Temp, RTD, 1/4-28	View
909-D0000-00	Ammeter Shunt, +/-50 mV, 100 A	Ask us

Step 5 Select GFC™ 500X Autopilot

One GSA 28 servo per axis (pitch, roll, yaw damper). The GMC 507 mode controller is optional with AXIS, but recommended.

Part No.	Description
010-01068-20	GSA 28 Servo (1 per axis)	View
010-01946-00	GMC 507 Mode Controller, Unit Only (optional)	View

Step 5A Select Autopilot Install Kits and Servo Mounts

One GSA 28 connector kit per servo. The GMC 507 install rack is recommended.

Part No.	Description
010-12700-00	GMC 507 Connector Kit	Ask us
010-12700-10	GMC 507 Install Rack	View
011-02950-00	GSA 28 Connector Kit	View
011-02950-01	GSA 28 Connector Kit, Right Angle	View
011-02952-01	GSA 28 Servo Install Kit, Generic with Mounting Bracket	View
011-02952-10	GSA 28 Servo Install Kit, RV-6 Roll	View
011-02952-11	GSA 28 Servo Install Kit, RV-4/8 Pitch	View
011-02952-12	GSA 28 Servo Install Kit, RV-7/8/10 Roll	View
011-02952-13	GSA 28 Servo Install Kit, RV-9 Roll	View
011-02952-14	GSA 28 Servo Install Kit, RV-6/7/9 Pitch	View
011-02952-15	GSA 28 Servo Install Kit, RV-10 Pitch	View
011-02952-16	GSA 28 Servo Install Kit, RV-10 Yaw	View

Step 6 Select IFR GPS, Radios and Audio Panel

If your AXIS display has no built-in IFR GPS or radio, pair it with one of these.

Part No.	Description
010-02002-05	GTN 750Xi, IFR GPS/NAV/COMM/MFD	View
010-01999-05	GTN 650Xi, IFR GPS/NAV/COMM/MFD	View
010-02232-51	GNC 355, IFR GPS and COMM Radio	View
010-01823-50	GNX 375, IFR GPS and ADS-B In/Out Transponder	View
010-01822-50	GPS 175, IFR GPS Navigator	View
010-02481-01	GNC 215, NAV/COMM Radio	View
010-03395-01	GTR 205X, COMM Radio (optional 4-place intercom & audio panel)	View
010-03396-01	GTR 205XR, Remote COMM Radio	View
010-01318-03	GMA 245, Audio Panel (up to 6-place intercom)	View
010-01471-03	GMA 245R, Remote Audio Panel (up to 6-place intercom)	View

Step 7 Select Transponder and Datalinks

Three remote-mount transponders, all ADS-B Out. GTX 45R adds ADS-B In. Choose the GTX 45R with GPS if you have no IFR GPS position source.

Part No.	Description
010-01757-46	GTX 45R with GPS, ADS-B In/Out, Remote-mount (GPS antenna not included)	View
010-01757-06	GTX 45R, ADS-B In/Out, Remote-mount	View
010-01756-01	GTX 35R, ADS-B Out, Remote-mount	View
010-01561-10	GDL 50R Datalink, ADS-B Receiver, Remote-mount	View
010-01561-50	GDL 51R Datalink, SiriusXM Receiver, Remote-mount	View
010-01561-30	GDL 52R Datalink, SiriusXM & ADS-B Receiver, Remote-mount	View
010-12498-60	GDL Remote Mount Connector Kit (required to connect GDL to AXIS)	View
010-02639-00	GA 35S GPS/WAAS Antenna (required for GTX 45R with GPS)	View
010-12498-50	GA 24 TNC SiriusXM Antenna (required for SiriusXM)	View

Step 8 Additional Options

Feature enablements and accessories. GAD 29 may be needed with an older GPS navigator, or for navigation on a G5.

Part No.	Description
006-B5211-00	AXIS ChartView™ Enablement	View
006-B5211-01	AXIS SurfaceWatch™ Enablement	View
006-B5211-02	AXIS TAWS-B Enablement	View
010-02942-00	GHA 15, Height Advisor	View
010-02975-01	GCO 14, Carbon Monoxide Detector	View
010-01172-20	GAD 29C, ARINC 429 Interface Adapter	View
011-03271-00	GAD 29 Connector Kit (required to connect AXIS)	View
010-01525-10	GAD 27, Electrical Interface Adapter	View
011-03877-00	GAD 27 Connector Kit (required to connect AXIS)	View
010-01074-00	GAP 26, Unheated	View
010-01074-10	GAP 26, Heated/Unregulated	View
010-01074-20	GAP 26, Heated/Regulated	View
010-01287-00	GI 260, Angle of Attack Indicator (not required to show AoA on the AXIS PFD)	View

Experimental systems take up to 6 AXIS displays. Typically no extra Garmin parts are needed to upgrade from G3X Touch. Check the installation manual for your aircraft, or ask us to confirm the parts list.

Get an AXIS quote

Get Some AXIS Inspiration

AXIS flight displays provide a wide range of options for creating your next panel, and the system scales to fit any cockpit and mission. Some popular layouts below — contact Aeronautical Aviation to design one for your aircraft.

Approved Aircraft & Integration

Integrating AXIS Into Your Panel

AXIS flight displays are FAA-approved for hundreds of Part 23 Class I/II aircraft. Check whether yours is on Garmin’s Approved Model List (AML). For a ZS-registered aircraft, contact us to confirm applicability before you plan the install.

View Approved Aircraft (PDF)

Interface Compatibility

Garmin products are designed for compatibility with a wide range of avionics. Contact Aeronautical Aviation to confirm compatibility with your specific aircraft make/model and current avionics configuration.

Active Traffic Receiver

GTS™ 800
GTS 820
GTS 825
GTS 850
GTS 855

Audio Panels

GMA™ 240
GMA 245
GMA 245R
GMA 342
GMA 345

Autopilots

GFC™ 500 (twin-engine coming soon)
FAA-approved aircraft for GFC 500
GFC 500X
GFC 600 (coming soon)
FAA-approved aircraft for GFC 600
Other-brand autopilots via a GI 275: NAV source, course/heading select and GPSS mode
GI 275 autopilot compatibility (PDF)

Carbon Monoxide Detectors

GCO™ 14
CO Guardian Aero 452-201 / 454 / 455 / 551 / 553 / 851

Datalink

GDL® 60 (coming soon)
GDL 50R / 52R (SiriusXM® coming soon)
GDL 50 / 52 (SiriusXM coming soon)

Interface Adapters

GEA™ 24
GEA 110
GAD™ 27
GAD 29
GAD 13

Height Advisor

GHA™ 15

Navigators

GTN™ 750Xi / 725Xi / 650Xi / 635Xi / 625Xi
GTN 750 / 725 / 650 / 635 / 625
GPS 175, GNC® 355, GNX™ 375 (VNAV)
GNS™ 430W / 530W / 480 (COMM controlled from the navigator itself, not from AXIS)
GNC 420W, GPS 400W, GPS 500W

Sensors

GSU 25 / 73 / 75
GMU 11 / 22 / 44B
GAP 26
GTP 59

Standby Flight Display

GI 275 (ADAHRS-equipped)
G5 — Certified
G5 — Experimental / LSA

Radios

GNC 215 / 255
GTR™ 205 / 205R / 205xR / 225
GTR 20 / 200
SL30 / SL40

Transponders

GTX™ 345 / 335 / 325
GTX 345R / 335R / 45R / 35R
GTX 330 / 330ES / 328 / 327
GTX 33 / 33ES / 32 / 23 / 23ES
GPS 20A

Video

HDMI input on every AXIS display — dedicated MFD page or PFD inset from any HDMI source

Additional Information

Manuals

Pilot’s guide, approved aircraft model list, STC information and more at the Garmin Support Center.

Certified Experimental

Trainer Apps

Try AXIS before you fly it. The free AXIS Trainer runs on iPad® and PC.

Download the trainer

Training

Garmin classroom and eLearning courses help you get the most out of the system quickly.

Classroom eLearning

Installation & Support

AXIS carries Garmin’s warranty and avionics product support. We design, install and support AXIS panels from Hangar 202, Lanseria.

Talk to us

¹Remote aircraft status requires an active PlaneSync subscription and an internet-connected smart device. On-ground only. Requires GDL 60 with LTE connectivity; signal strength and other factors may apply. LTE coverage outside the US is limited, see Garmin.com/planesynccoverage. ²Automatic database updates require active PlaneSync and database subscriptions; flight-log upload requires an active PlaneSync plan. On-ground only. Requires GDL 60 LTE or Wi-Fi connectivity. ³Requires compatible ADS-B transponder; sold separately.

Images © Garmin Ltd. or its subsidiaries. AXIS™, Smart Glide™, SafeTaxi® and SurfaceWatch™ are trademarks of Garmin Ltd. or its subsidiaries. iPad is a trademark of Apple Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. The Bluetooth word mark and logos are registered trademarks of Bluetooth SIG, Inc. Feature availability, part numbers and certification coverage subject to Garmin’s release schedule and country of registration. Contact Aeronautical Aviation for the latest STC applicability to your aircraft.
