TXi Flight Displays

Modernize Your Piston, Turboprop or Jet

Upgrade with TXi™ touchscreen flight displays that deliver advanced PFD/MFD/EIS capabilities and provide an all Garmin retrofit path for your aircraft. They’re available as G500 TXi, G600 TXi and G700 TXi displays to meet software-assurance levels required for certification in select Class I/II/III/IV aircraft.

Powerful and Purposeful

This system features bright, high-resolution LCD touchscreen displays. They’re easy to read and easy to use — so you can have a whole new perspective on situational awareness. Powerful dual-core processors boost the system’s graphical display capabilities — with swift zooming, panning and map rendering. Pilots can easily access display functions with touchscreen inputs or via the familiar concentric knobs.

Versatile Display Options

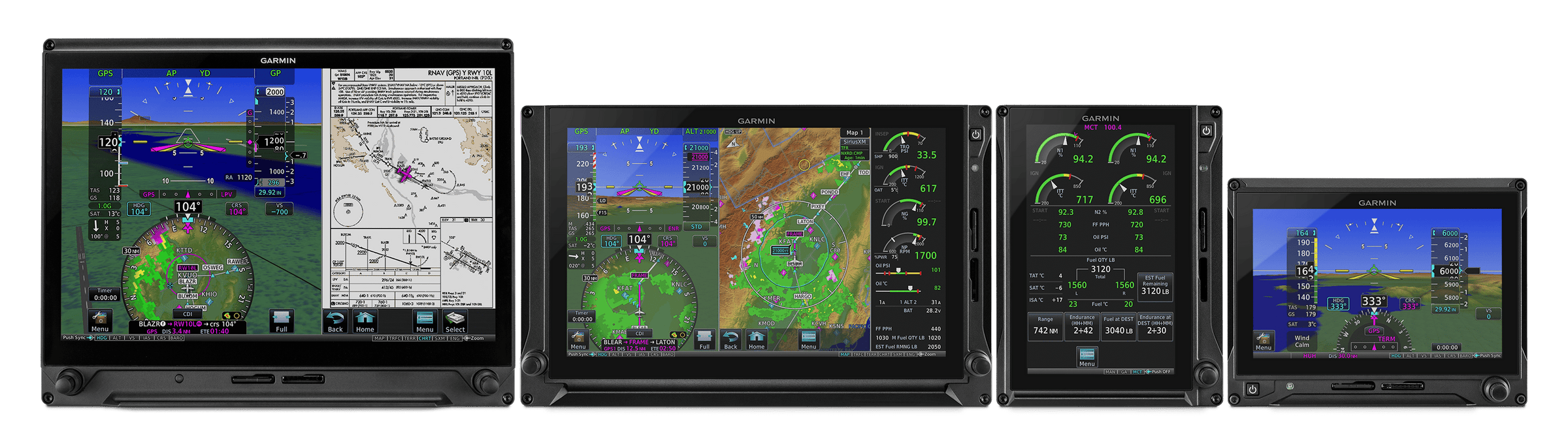

Pair up to four displays¹ — or install one now, and scale up your panel as your needs change. Choose from 12.1-inch or 10.6-inch displays for either PFD, MFD, or PFD/MFD functionality with an optional engine indication system (EIS) strip. A single 7-inch portrait format can act as a dedicated PFD, MFD, EIS or a split-screen MFD/EIS². The 7-inch landscape format can be configured to provide dedicated PFD information, EIS or split-screen MFD/EIS².

Upgrade in a Snap

TXi is fully compatible with system sensors for the original G500 and G600 series of flight displays, creating an easy, cost-effective upgrade path. For those upgrading from a traditional 6-pack, reliable solid-state attitude heading reference system sensors replace maintenance-prone mechanical gyros for added precision and reduced overall lifecycle costs as well as improved dispatch reliability and greater weight savings.

Extensive Interface Options

Extensive integration capabilities with Garmin systems and select third-party systems provide a simplified, feature-rich upgrade. That includes a wide range of autopilots, such as our digital GFC™ 600 series, GFC 500 (requires a G5 or GI 275 as standby instrument) and other popular autopilots installed in Class I/II/III aircraft.

EIS Displays

With TXi engine monitoring, it’s easy to see and analyze the critical engine, fuel and electrical parameters that can help you maintain the best, most efficient performance from your aircraft. Add as a primary engine monitoring solution to replace old analog gauges or prior EIS displays to complete your all Garmin panel.

¹Some limitations may apply; see your authorized Garmin dealer for details
²The 7-inch display split-screen MFD/EIS format is available only for single-engine piston aircraft
