Advanced Touchscreen Flight Displays
Upgrade your panel with advanced flight displays that put all the high-value flight information you want right in your field of view. TXi™ displays are available in 12.1-inch, 10.6-inch and 7-inch sizes to provide PFD/MFD functionality with industry-leading flexibility that accommodates a wide range of configurations.
Primary Flight Display
Update with a high-performance PFD that’s tailored to your aircraft.

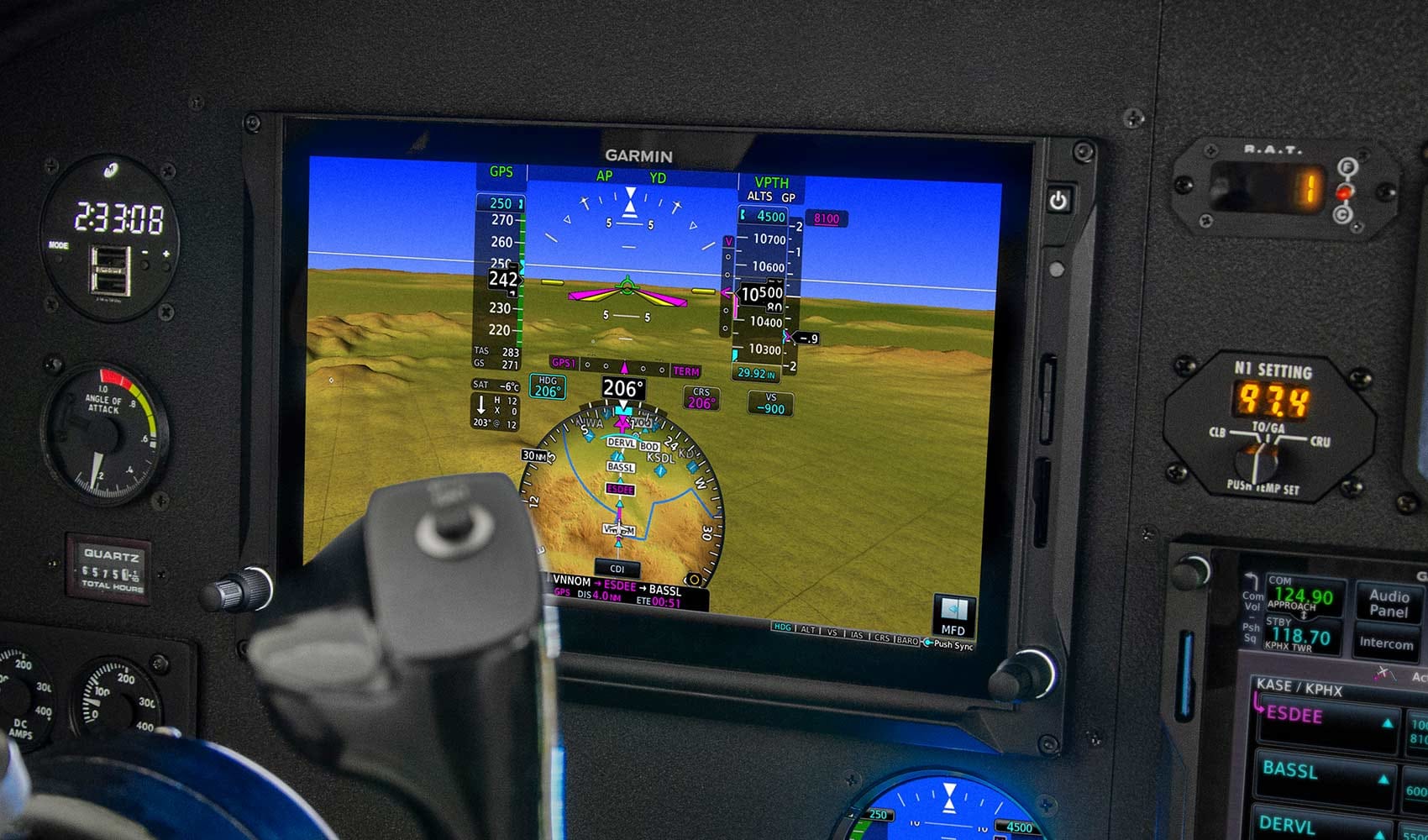

Primary Flight Data
See attitude, airspeed, altitude, heading, vertical speed and more. Plus, navigate with an HSI that accepts VOR/LOC as well as GPS course guidance — including both vertical and lateral course deviation — with your compatible navigator.

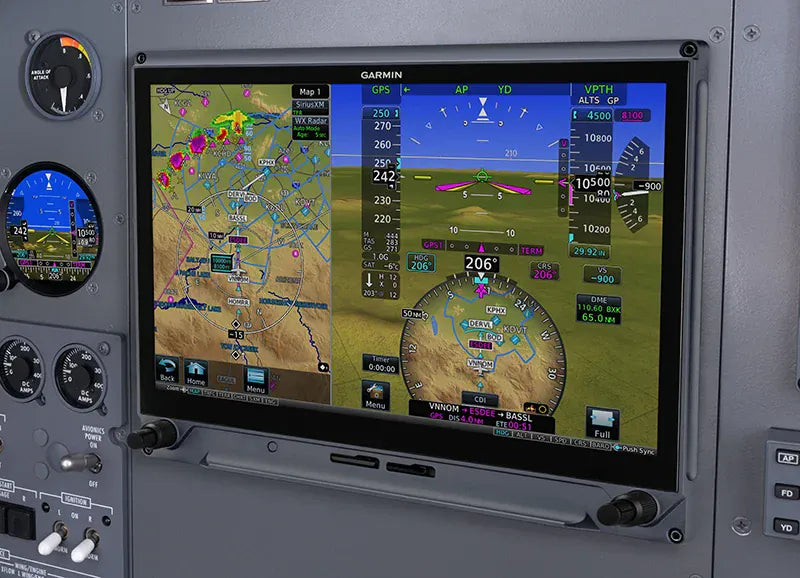

Versatile Displays
With a touch, switch from full-screen PFD to split PFD/MFD to put more valuable flight information directly in your field of view.

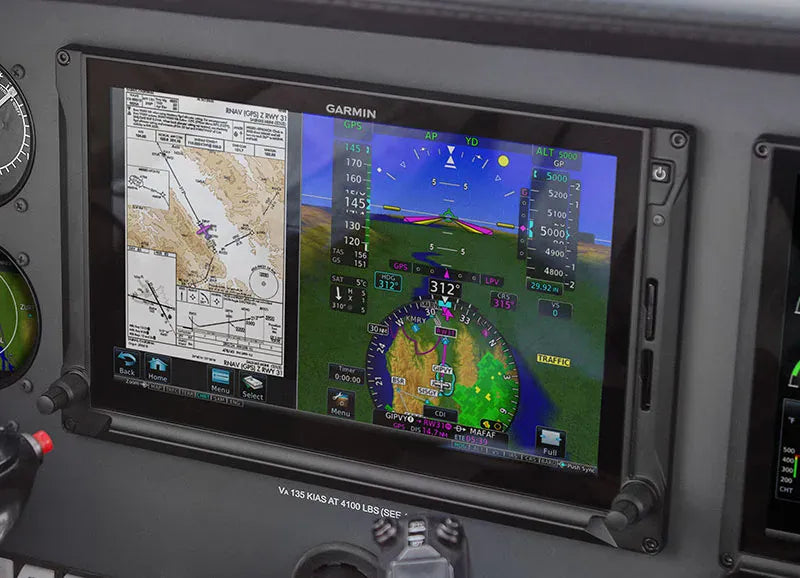

HSI Mapping
Get an MFD-like perspective map view within the HSI portion of your PFD on the 12.1-inch, 10.6-inch and 7-inch portrait displays. Overlay weather, traffic, terrain, SafeTaxi® airport diagrams and more.

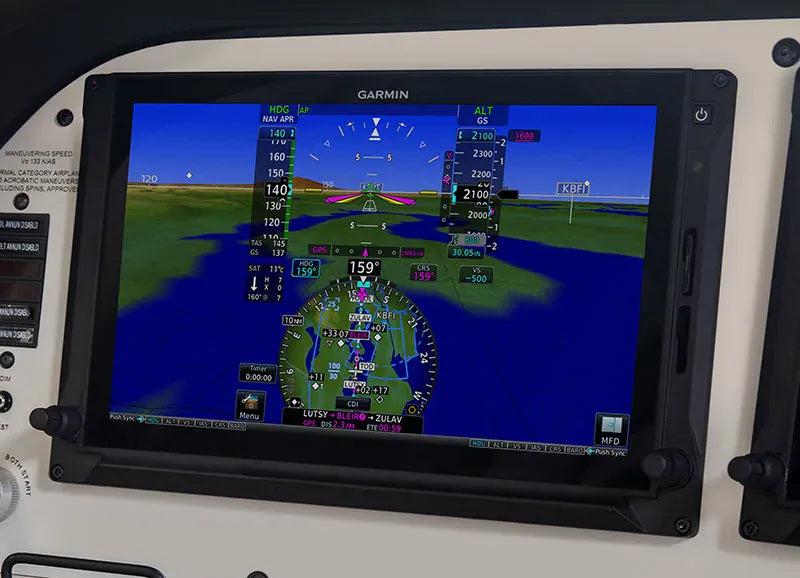

Synthetic Vision Technology
SVT™ synthetic vision technology enhances your situational awareness in all phases of flight, with 3D depictions of terrain, obstacles and airports.

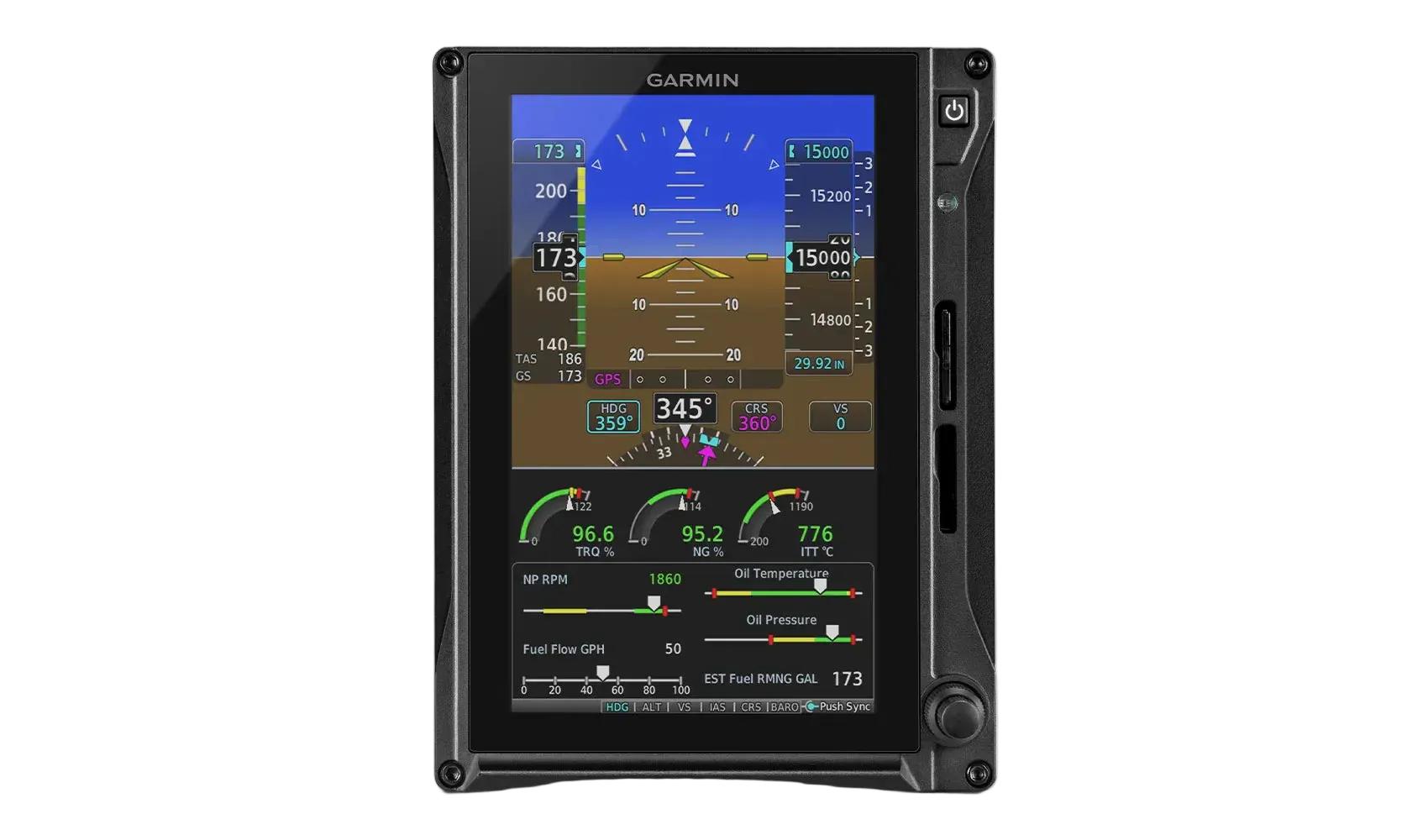

Reliable Reversionary
In the unlikely event of a display failure, reversionary mode enables the remaining flight displays, in multiple display installations, to present all essential flight information — including engine indication system (EIS) data when installed.

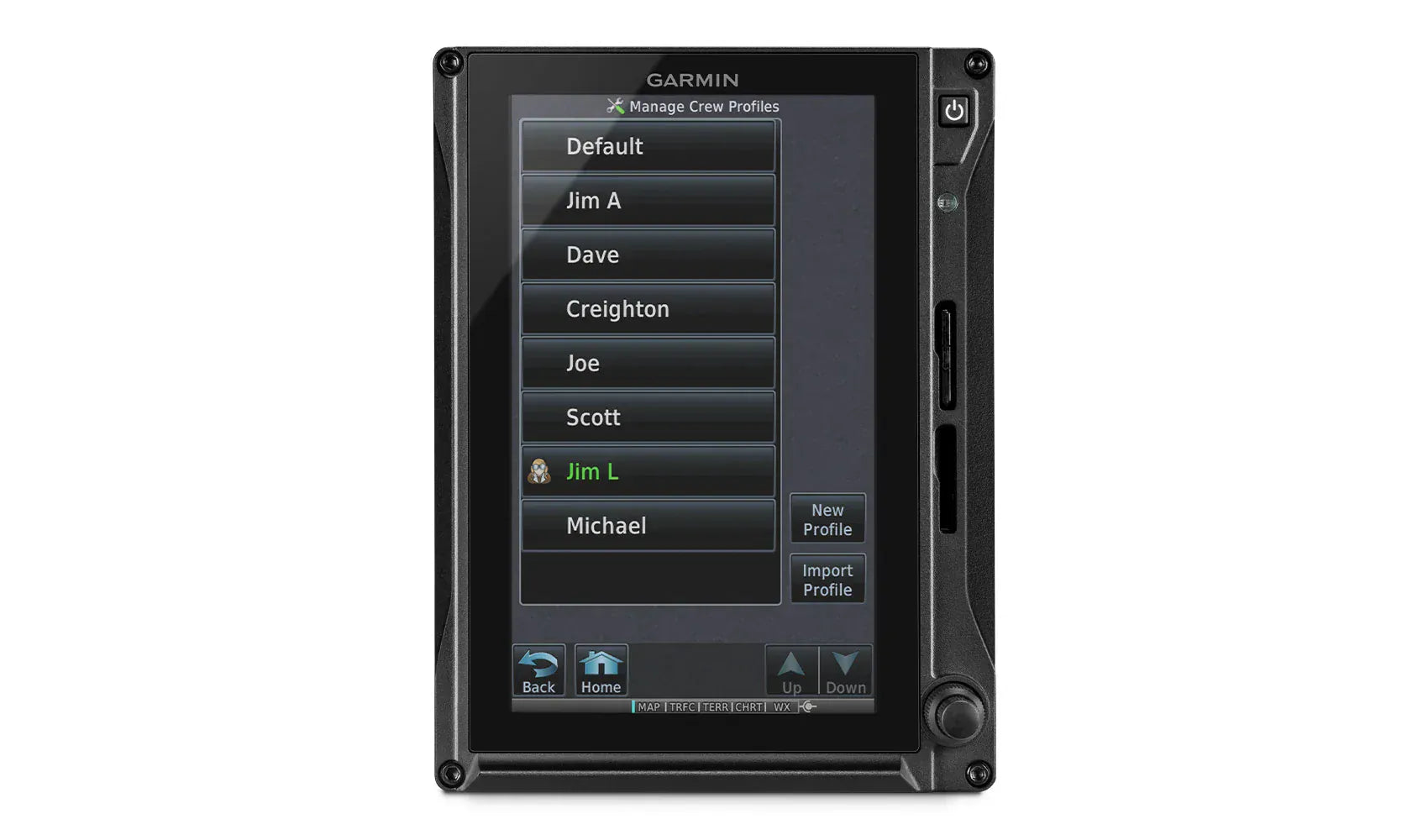

Save Pilot Profiles
Under your individual profile, create custom pilot profile settings for backlighting, map settings and more — so you can easily restore your system preferences prior to each flight.
Enhance Your Situational Awareness
Gain greater situational awareness with MFD capabilities that help you see and avoid hazards in flight.

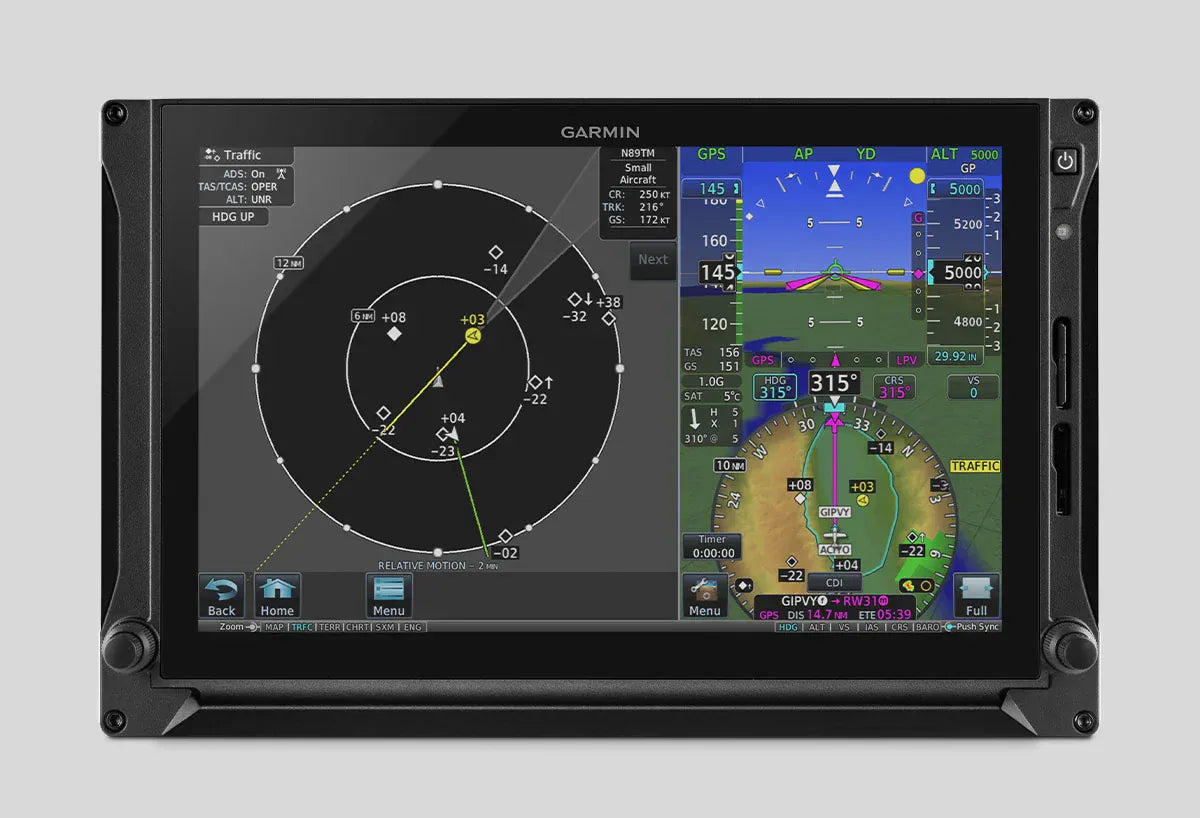

Stay on Top of Traffic
Display ADS-B “In” traffic information, and enjoy our proprietary TargetTrend™ and TerminalTraffic™ technologies to more intuitively monitor ADS-B traffic targets in the air and on the ground when you pair TXi to your compatible ADS-B transponder (sold separately). And for even more advanced traffic surveillance in high-density airspace, TXi integrates with select TAS or TCAS systems, including our GTS™ family of traffic surveillance products.

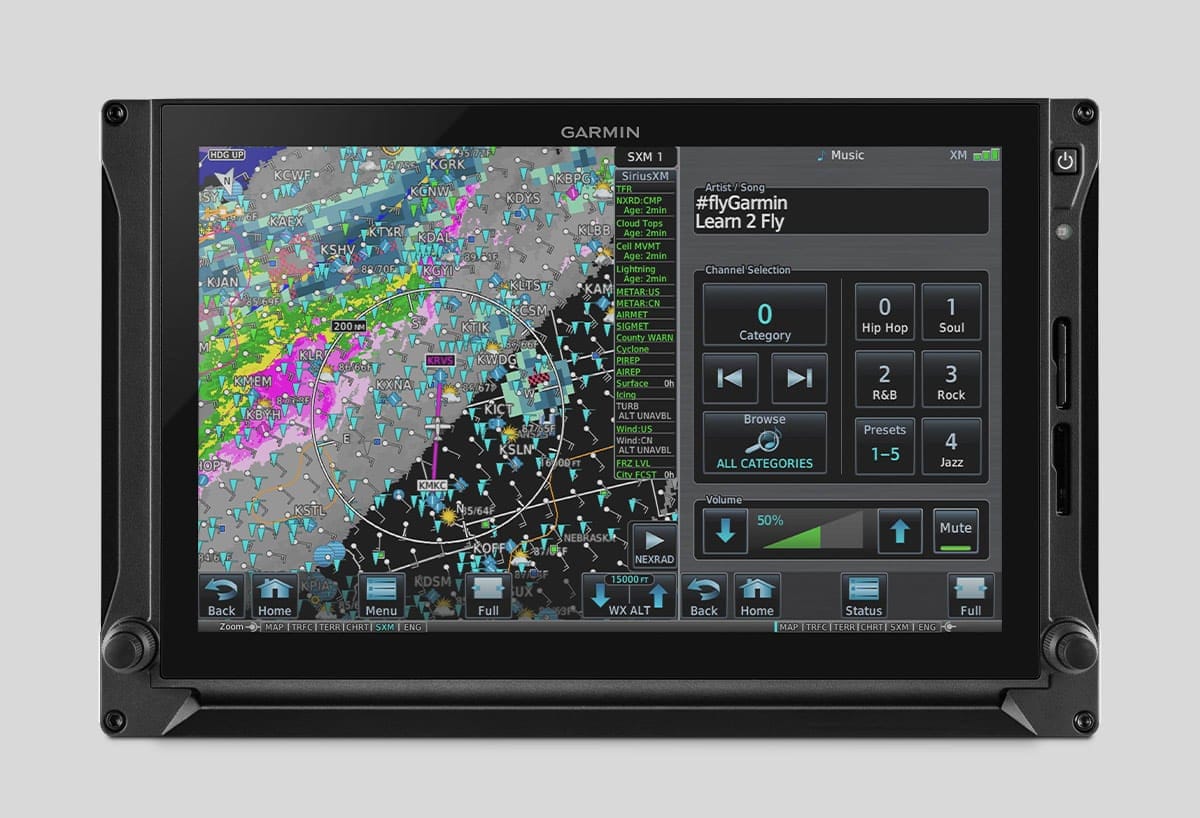

Ready for Weather
Display returns from the Doppler-capable GWX™ 8000 StormOptix™ weather radar or GWX™ 75 onboard color radar that offer reliable solid-state designs as well as optional turbulence detection and ground clutter suppression capabilities. For a worldwide datalink solution, our GSR 56 datalink provides weather data and radar imagery with a subscription through the Iridium® global satellite network. The TXi display can display ADS-B “In” weather when connected with a compatible transponder. You can also install a GDL® 69A receiver with SiriusXM® to display satellite weather coverage — as well as listen to audio entertainment1.
Flight Information
Put more capabilities at your fingertips with tools that help reduce your workload in flight.

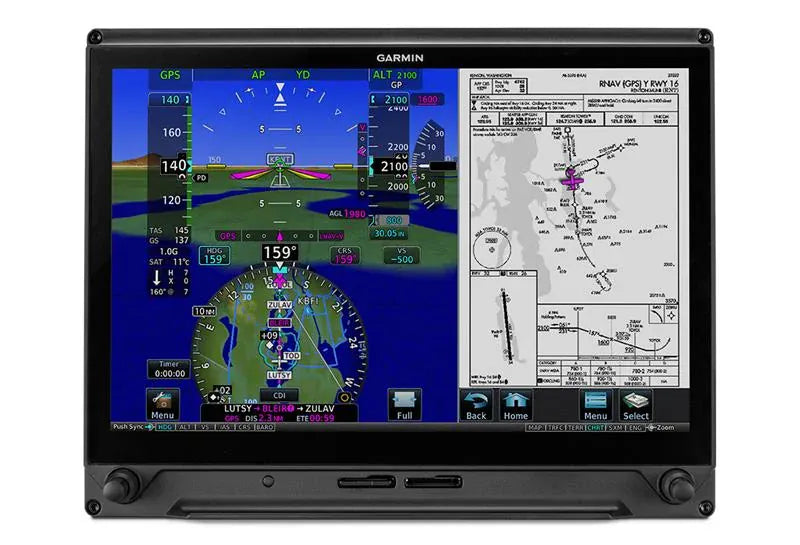

Charts in Context
Our standard FliteCharts® procedure charts or optional Jeppesen® style ChartView™ plates — available with a subscription — provide georeferenced approaches and terminal procedures.

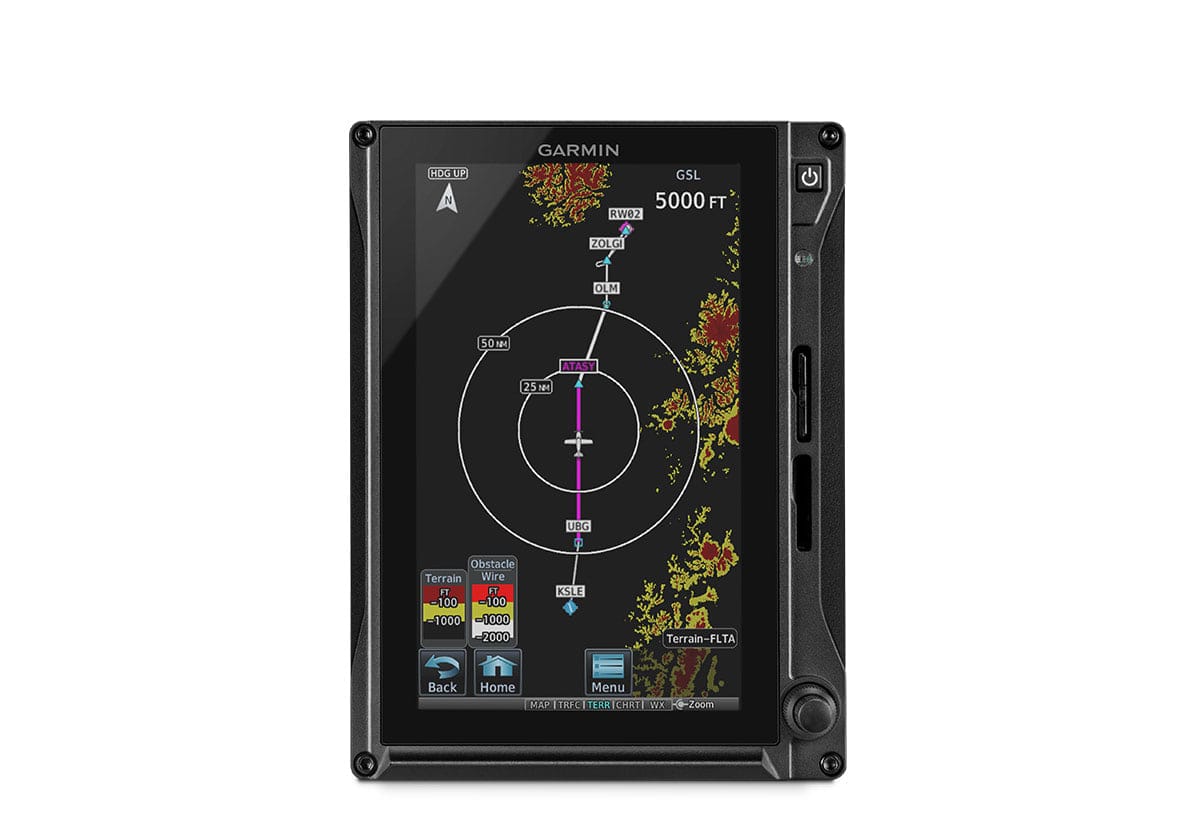

Terrain Alerting
A built-in database depicts terrain and obstacles with color-coded 2D displays, while visual and audible alerts indicate when potential terrain conflicts loom ahead.

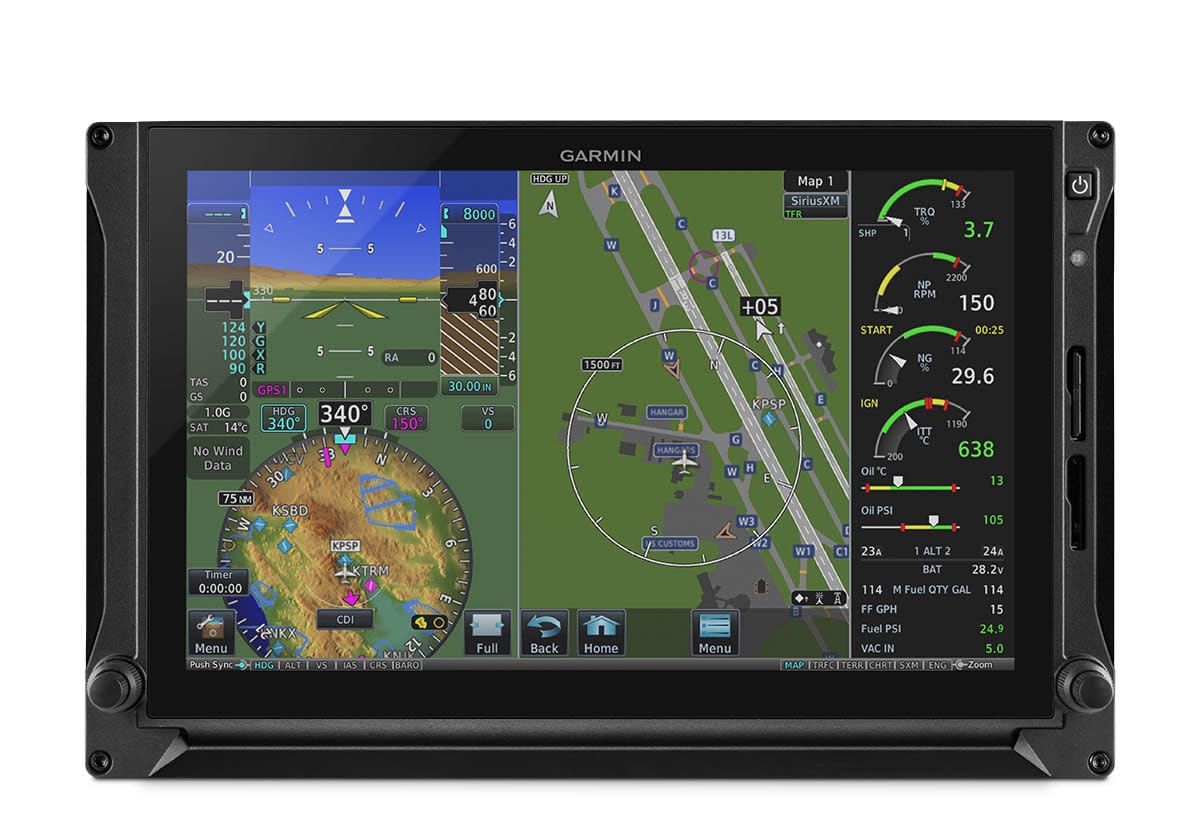

SafeTaxi Database
Upon touchdown, our built-in SafeTaxi diagrams help you navigate airport environments safely, with your aircraft position overlaid onto taxiways, runways, ramps and more.
Interactive and Informative Mapping
Get all your route information at your fingertips. Touch anywhere on the map to see your distance, bearing and time to that location — as well as its elevation and GPS coordinates. TXi also shows detailed surface features, cities, airports, SUAs and more on the dynamic map display by referencing built-in terrain, mapping and obstacle databases.

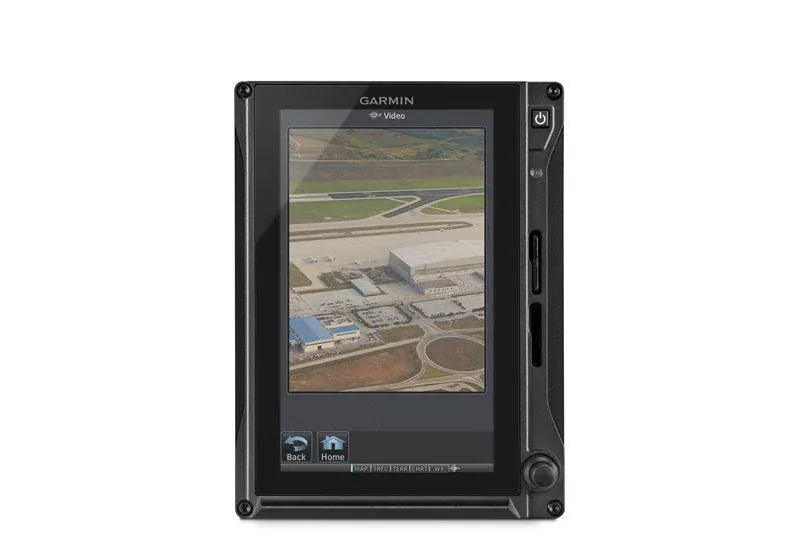

Video Inputs
Pair your compatible camera with multiple video input options that enable the TXi MFD to serve as a live-cam video monitor. It supports a variety of camera configurations and locations — enabling the MFD to function as a monitor for FLIR, tail-cam or other live video.

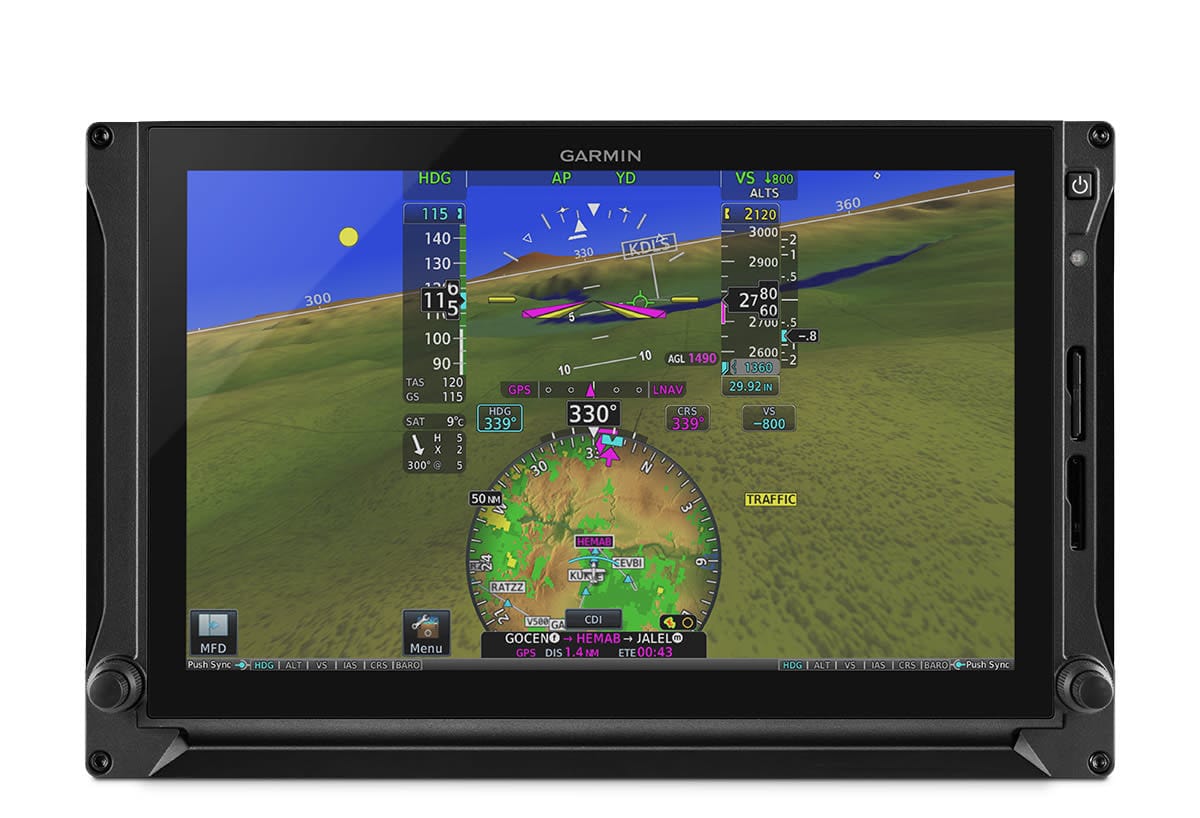

Safety-enhancing Features
Pair TXi with the GFC™ 500 or GFC 600 autopilot3 for overspeed and underspeed protection, a dedicated LVL button and Garmin ESP™ (Electronic Stability and Protection) safeguarding technology.

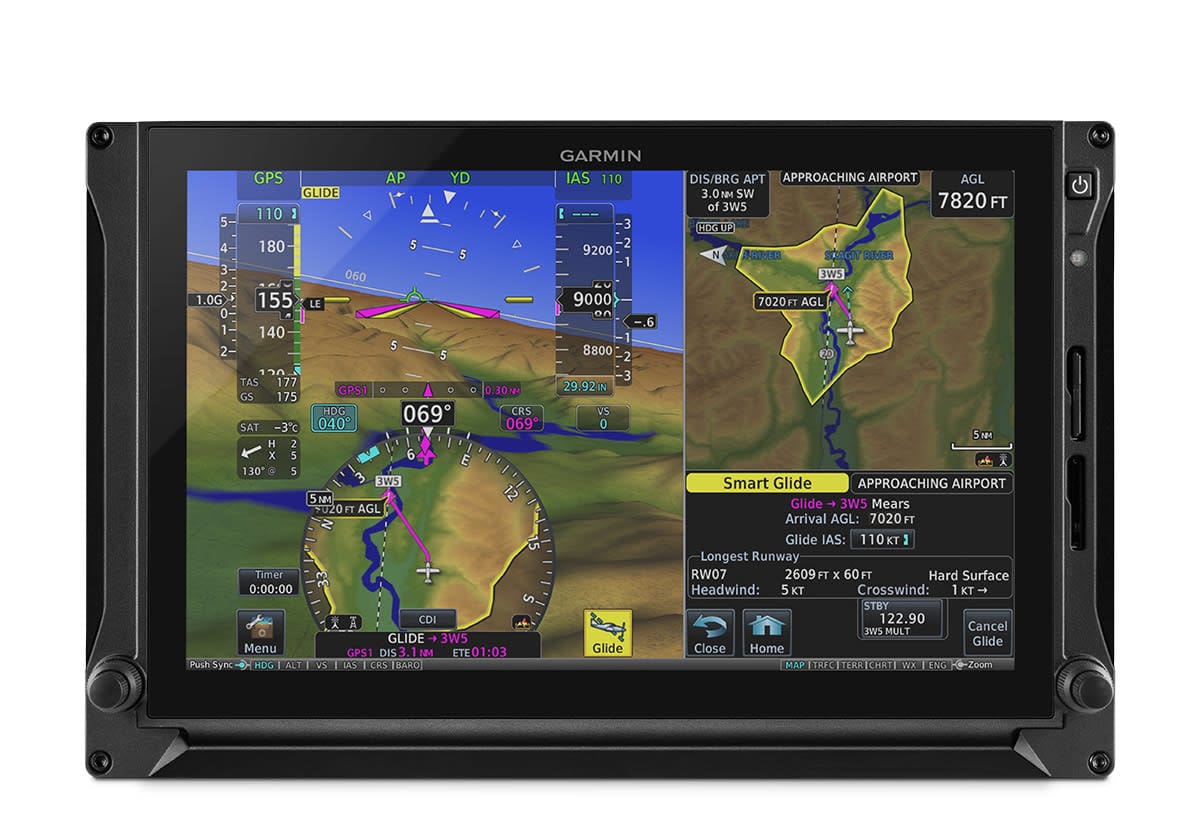

Compatible with Autonomí® Technology
When paired with a GTN™ Xi series navigator, the TXi display supports Smart Glide™ engine-out navigation functionality2. Once activated, Smart Glide recommends a nearby airport and creates a Direct-to route so you can land quickly. And for select piston twins, TXi with EIS capabilities enables Smart Rudder Bias in emergency engine-out situations when paired with the GFC 600 autopilot with the yaw damper option.

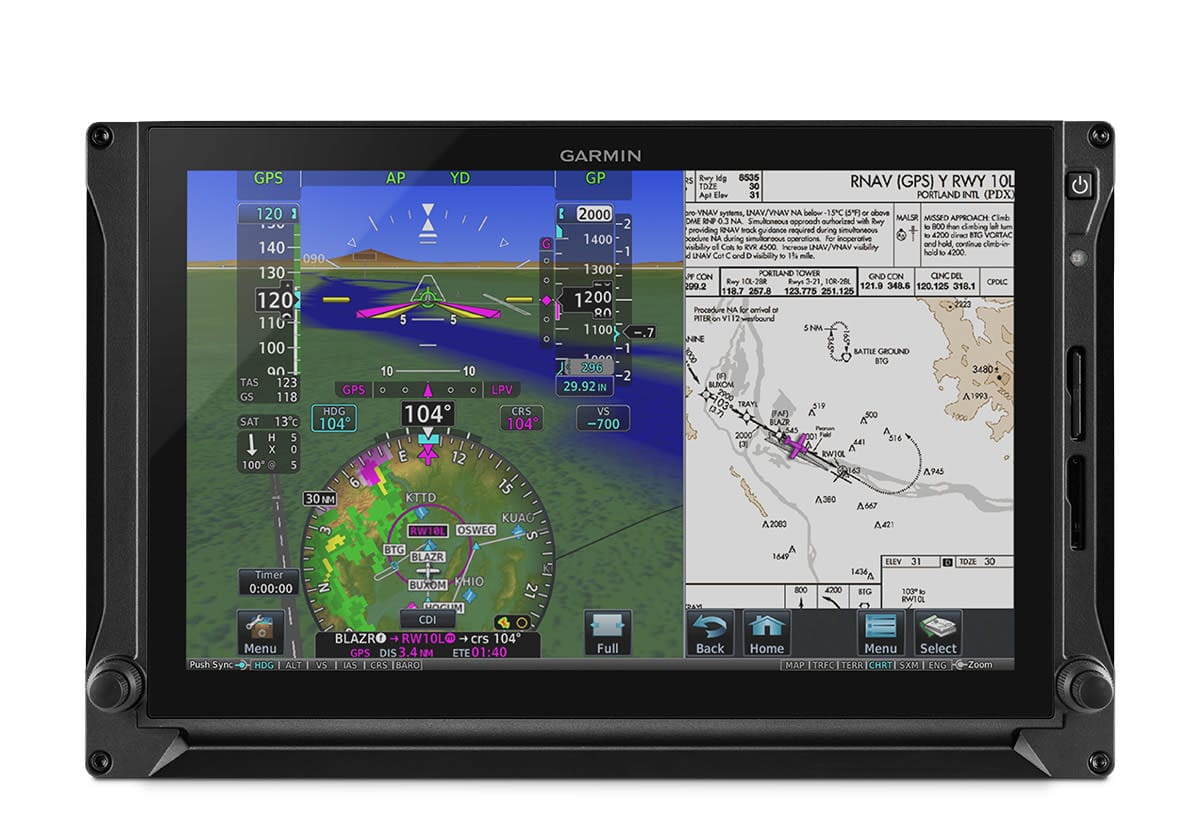

IFR Approach Capability and LOC Switching
Add LPV/LNAV/ILS approach capabilities when you pair TXi with select Garmin navigators (each sold separately), such as GTN 650Xi or GTN 750Xi. The TXi display also allows automatic GPS-to-LOC switching when paired with GTN or GTN Xi series navigators, which allow the GFC 500 or GFC 600 autopilot to fly complete ILS approaches.

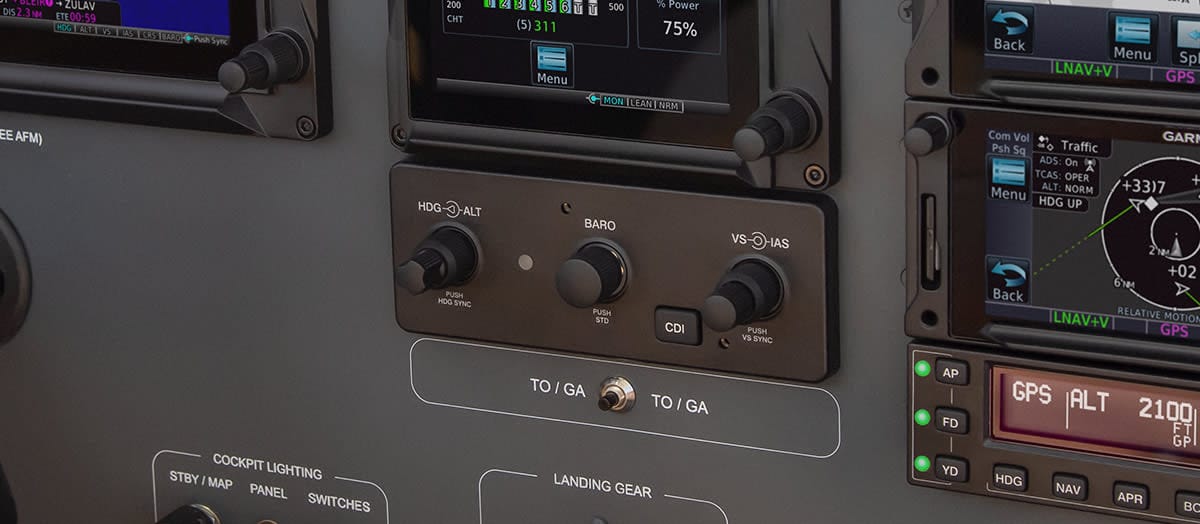

Dedicated Controllers
Separate dedicated PFD controllers are available in five different control layouts for continuity with the specific autopilot system installed in your aircraft.
Connected Cockpit
Pair your mobile device to your TXi flight display for simplified flight planning, database updates and more.
COMPATIBLE WITH CONNEXT® TECHNOLOGY
Pair with a GDL 60 or Flight Stream 510 interface to allow Connext wireless connectivity, and make true cockpit companions of your compatible mobile devices running the Garmin Pilot™ and ForeFlight Mobile apps — as well as compatible aviation portables — to create and update flight plans.
PlaneSync® Technology
With an optional GDL 60 datalink, automatically update your avionics databases4, log flight/engine data5, and remotely check fuel and systems status6 via your Garmin Pilot smart-device app.
WHICH TXi IS RIGHT FOR YOU?
G500 TXi
Designed specifically for FAR Part 23 Class I/II aircraft (weighing less than 6,000 lbs).
G600 TXi
Designed for FAR Part 23 Class III aircraft (typically those weighing between 6,000–12,500 lbs).
G700 TXi
Meets Level A software assurance levels for Part 23 Class IV (MTOW more than 12,500 lbs) and Part 25 aircraft.
Additional Information
Learn more about the benefits of adding a TXi flight display to your panel, and start planning your system upgrade.
Download Manuals
You can view a downloadable pilot’s guide, approved aircraft model list, STC information and more at the Garmin Support Center.
Trainer Apps
Download the free TXi Trainer app for iPad® from the App Store® — or download the PC Trainer from our website — and explore how intuitive touchscreen flight displays can be.
Webinars and Seminars
Enroll in a webinar or an in-person seminar at your local Garmin dealer to get an overview of the system and learn about the latest features.
Award-winning Support
TXi is backed by a comprehensive warranty and our award-winning avionics product support team. And with available classroom and eLearning courses, you can maximize your system’s capabilities.
