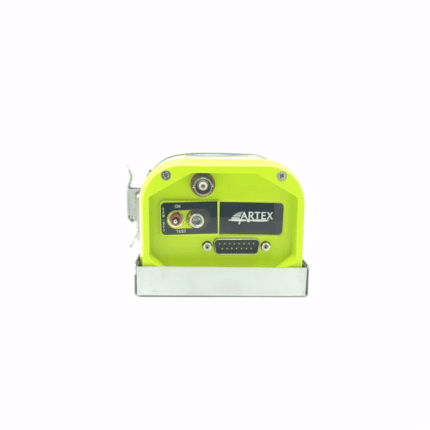

ARTEX Emergency Locator Transmitters ARTEX ELT 345, 110-773 Antenna, Slim-Line Switch 8108 ARTEX ELT 345, 110-773 Antenna, Slim-Line Switch

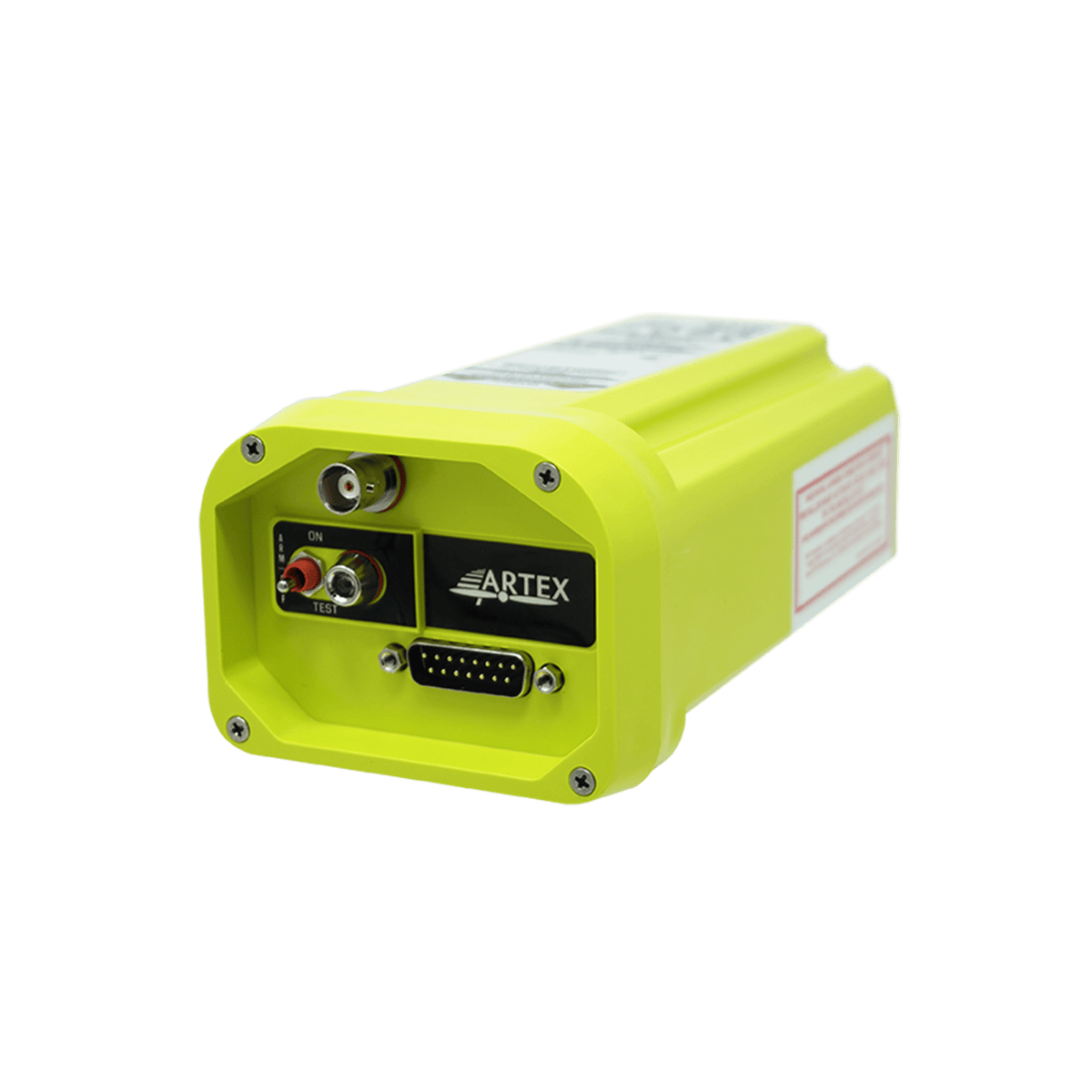

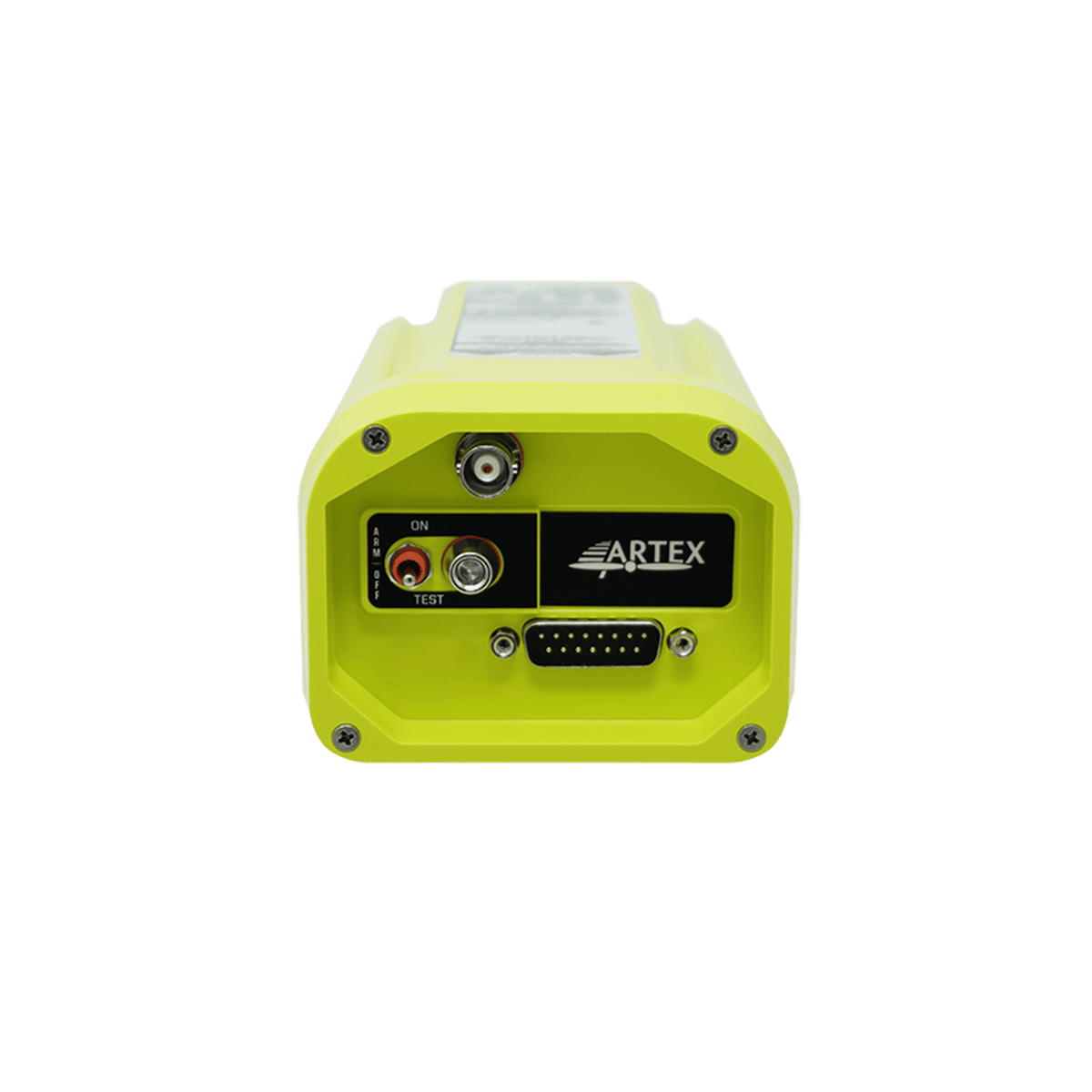

ARTEX ELT 345 Slim Kit | 15in Whip Antenna, Slim-Line Switch

R 20,882.74 / each

ARTEX ELT 345 Slim Kit | 15in Whip Antenna, Slim-Line Switch

8108

R 20,882.74 / each

Taxes included.

0 in stock Backordered - Ships in 15-20 business days

The provision of goods and services is subject to availability. In cases of unavailability, the provider will refund the client in full within 30 days. Cancellation of orders by the client will attract a 10% charge for administration costs.

The Provider reserves the right to cancel an order for which payment has already been received. This may occur if stock is insufficient or the quality of goods ordered does not meet the Provider’s standards. Should the Provider exercise this right, the User will receive a full refund with no deductions.

Any complaints regarding the standard and quality of the product or products bought by consumers through the e-commerce facility should be directed to the Marketing Manager, P.O. Box 1036, Lanseria, 1748, or admin@.aeronautical.co.za.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

All online credit card payments are processed by the Payfast Internet Payment Gateway. Card Holders may go to www.payfast.co.za to view Payfast’s security policies.

Part number: 8108 · ARTEX ELT 345, 110-773 Antenna, Slim-line Switch

The ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies and can provide position accuracy with an optional GPS input thanks to the built-in GPS navigational interface. GPS data is embedded from the first emergency transmission and provides Search and Rescue personnel with the aircraft location, within 100 meters, in less than a minute.

This unit can be activated manually with (remote switch or ELT switch) or automatically (the G-switch detects a 2.3G or greater impact). Once activated, the ELT 345 transmits a 406 MHz signal with the beacon's unique registration information and embedded GPS coordinates to the closest search and rescue agency via the Cospas-Sarsat satellite system. The beacon also transmits a 121.5 MHz homing signal to assist search and rescue to pinpoint the aircraft's GPS location.

The ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options (standard or slim style two-wire remote switch). The ELT utilizes the same RF output using only one coax cable to transmit both 406 MHz and 121.5 MHz signals through either a 15- or 23-inch whip antenna. The ELT's built-in navigational interface does not require aircraft power to operate—which results in lower installation costs—and the stainless steel mounting bracket supplied with the unit has a multiple hole mounting pattern to accommodate legacy footprints.

*9600 standard baud rate unless otherwise requested.

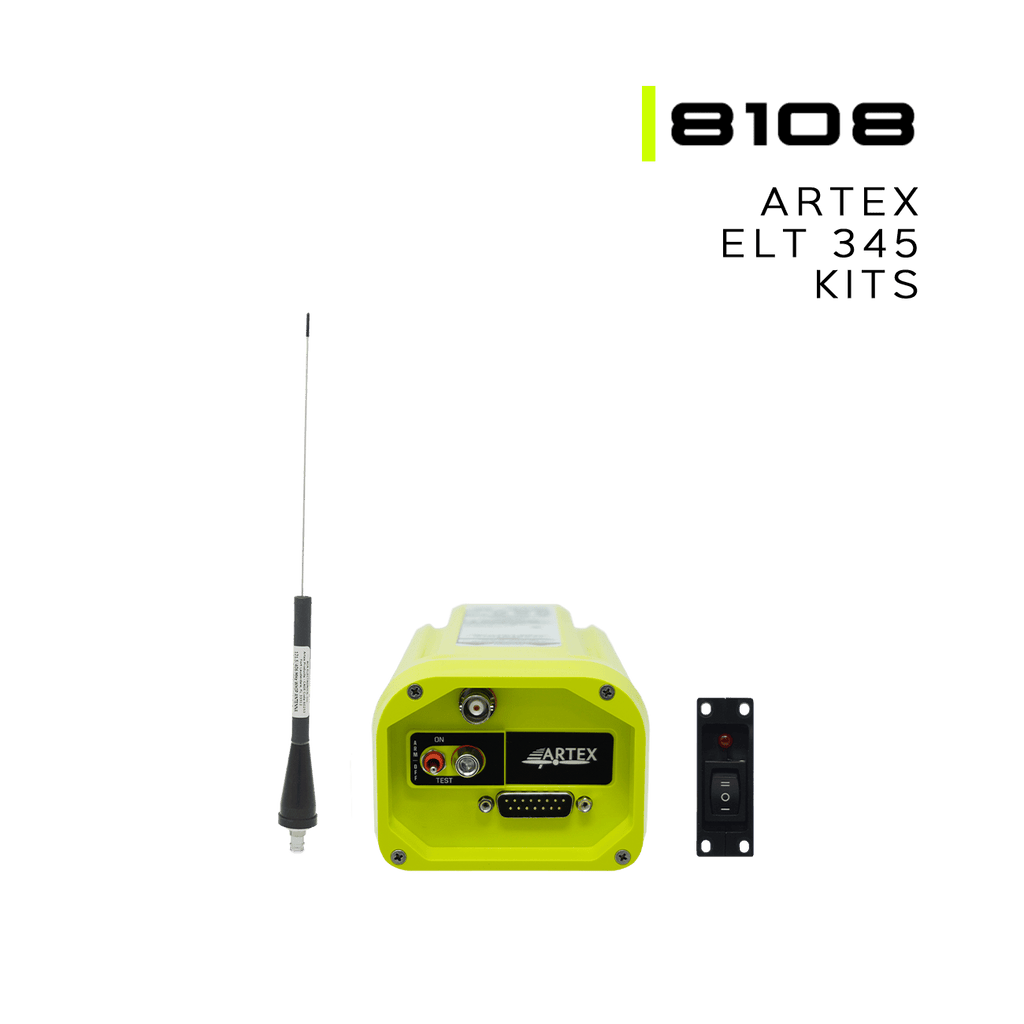

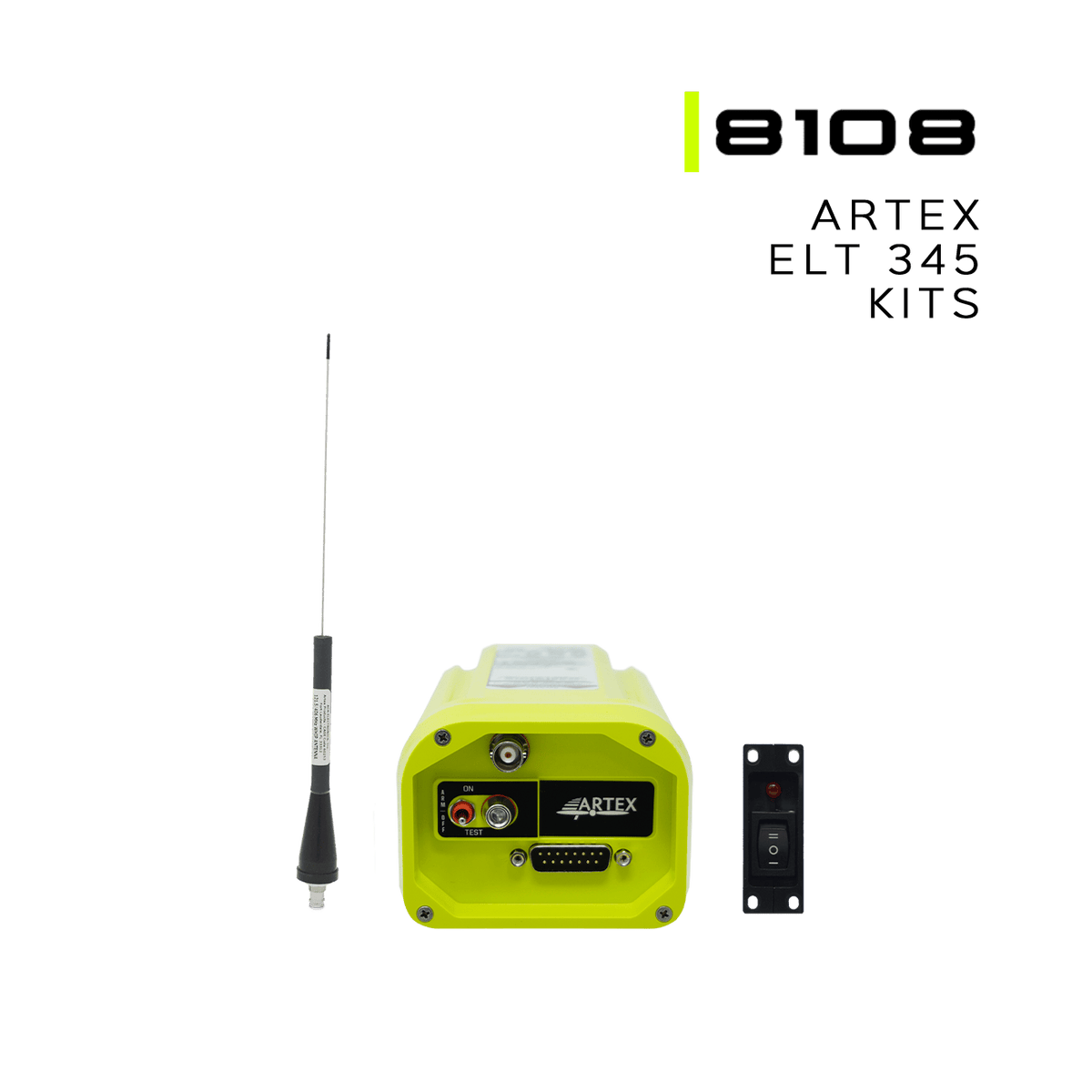

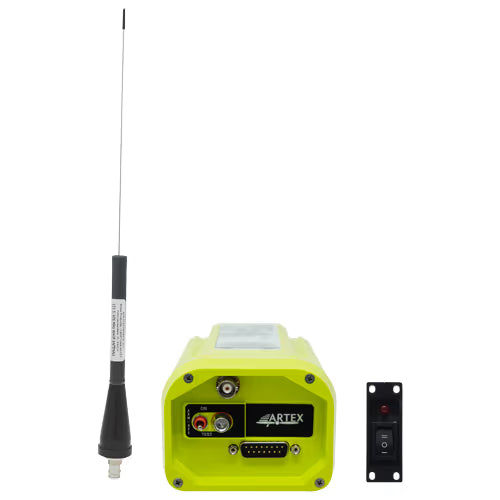

The ELT 345 Slim Kit includes a 15-inch black whip antenna, slim-line 2-wire remote switch, buzzer, mounting tray, 6 ft BNC to BNC coax cable, and install kit.

Features

Transmits on 406 MHz and 121.5 MHz frequencies
Built-in GPS navigational interface for position accuracy
Automatic activation via G-Switch (2.3G impact) or manual activation
Industry-low pricing with superior quality
6-year lithium (LiMnO₂) battery
Flexible installation options with 2-wire remote switch requiring no aircraft power
Universal mounting bracket compatible with legacy ELT replacements

Specifications

Operating Frequencies	406.040 MHz ± 1 kHz / 121.5 MHz ± 6.075 kHz
Output Power	406 MHz: 5W for 24 hrs; 121.5 MHz: 50mW for 50 hrs
GPS	Built-in navigational interface (NMEA 0183 / RS-232)
Battery	6-year Lithium (LiMnO₂)
Temperature	Operating: -20°C to +55°C; Storage: -55°C to +85°C
Weight	2.0 lbs with tray
Dimensions	6.40"L × 2.96"H × 3.78"W
Approvals	Cospas-Sarsat, FAA TSO, Industry Canada

Documentation

Download the product manual (PDF)

Shipping

Hazmat Shipping Notice

This product contains lithium metal batteries and is classified as dangerous goods (IATA Class 9, UN 3090 / UN 3091). It requires certified hazmat packaging and shipping via approved courier only. Shipping costs and lead times differ from standard freight — please contact us for a quote before ordering.

Supplied by Aeronautical Aviation, ARTEX Authorised Sales Centre for Africa.
